At SCIC (www.scic-chain.com), we operate on a fundamental truth that has guided the lifting industry for over a century: a chain is as strong as the weakest link. While precision manufacturing of G80 and G100 chain is essential, we believe that final inspection and testing play an equally – if not more – critical role than production itself. Why? Because no matter how advanced the forming, welding, and heat treatment processes, only a thorough, systematic validation of every single link can guarantee that the chain leaving our warehouse will perform safely under real-world lifting conditions.

Our quality control philosophy is simple: trust, but verify – 100%. Unlike suppliers who rely on batch sampling or visual checks alone, SCIC implements a multi-stage, zero-compromise final inspection protocol for every order lot. Below is an overview of what that means for your operation.

1. 100% Proof Force Test – The Backbone of Safety

Every individual link in every length of G80 or G100 chain passes through our computer-controlled proof test machine. Each link is subjected to a proof load equal to a specified percentage of its minimum breaking force (typically 2.5× WLL or as per EN 818-2 / ISO 16872). This test does not permanently deform sound links but will instantly reveal any link with substandard material, incomplete weld penetration, or hidden internal voids. Links that fail to hold proof force are automatically rejected and removed. This 100% coverage ensures that no “weakest link” travels to your warehouse.

2. As-Built Dimensional Control & Post-Proof Visual Inspection

Immediately after proof testing, every chain undergoes automated dimensional scanning (pitch, inside width, bar diameter) to verify conformity to grade-specific standards. Then, our trained inspectors perform a meticulous visual examination of each link under controlled lighting, specifically looking for:

- Surface cracks or micro-fissures that may have opened during proof loading.

- Nicks, gouges, or weld splatter.

- Heat treatment discoloration (indicating improper quenching/tempering).

Any chain link showing the slightest anomaly is cut out, and the segment is retested.

dimensional control and visual inspection for chains

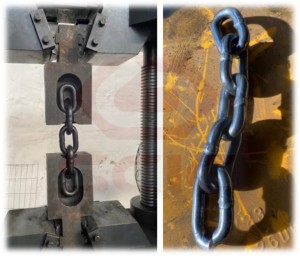

3. Destructive & Mechanical Testing – Random Validation

While 100% proof testing confirms strength, destructive testing confirms the material’s ultimate truth. From each production lot, we randomly select individual links for:

- Breaking force test – Measures ultimate tensile strength (minimum 4× WLL for G80, 4× for G100 with tighter tolerances), elongation at fracture (≥20% for G80 and G100), and weld zone integrity.

- Hardness test (Rockwell or Vickers) – Performed on the link crown, side, and weld area to ensure uniformity (G80: ~280-380 HB; G100: ~320-440 HB). Deviations indicate improper heat treatment.

These tests are not academic – they directly confirm that your chain will achieve the advertised WLL with a safety factor of 4:1, and that it will stretch visibly before breaking (no sudden brittle failure).

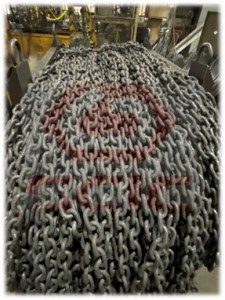

4. Packing, Tagging & Lot Traceability

After testing, each chain length is cleaned, lightly lubricated, and packed with extreme care. Every sling component and coil receives an indestructible tag stating:

- Grade (G80 or G100) and nominal size (mm).

- WLL for vertical lift.

- Test certificate number and SCIC lot code.

- Date of final inspection.

We apply distinct color coding (e.g., black for G80, blue for G100) to avoid field mix-ups. Coils are banded to prevent tangling, and master links/hooks are individually bagged.

5. The SCIC Lot Report – Your Assurance in Writing

No chain leaves our facility without a detailed, order-specific quality report issued for client review and release on delivery. This report includes:

- Summary of 100% proof test results (number of links tested/rejected).

- Dimensional inspection logs (sample size and deviations, if any).

- Destructive test results (breaking force, elongation, failure mode photos).

- Hardness test averages and ranges.

- Packing checklist and photographic evidence of tagging.

Clients receive this document before shipment, or with the delivery, providing full transparency. If any parameter falls outside order specifications, we hold the chains and re-evaluate.

When you cut bulk chain to make slings in your own workshop, you inherit the responsibility of every link. If a single hidden flaw escapes testing, that link becomes your sling’s weakest point – and your liability. SCIC’s final inspection protocol is designed to eliminate that risk at the source. We don’t just sell chain; we sell certified, validated, and documented lifting integrity.

For new fabricators especially: never accept bulk chain without a corresponding test report. And when you choose SCIC, you can cut, assemble, and ship with confidence – because we have already proven that every link is as strong as it should be.
