For longwall mining chains operating underground, corrosion is a persistent threat that works in concert with fatigue and abrasion to shorten service life. Surface finishes are the primary defense against this, but each option represents a compromise between corrosion protection, cost, and the preservation of the chain's mechanical integrity. Here is a review of the main surface finishes available in the market.
1. Black Paint / Baking Paint (Coating)
This is the most common and economical surface treatment, involving the application of a layer of paint (often baked on) to the chain's surface.
- Application: Used as a basic, cost-effective rust preventative measure. Often specified for general-purpose mining chains or as a temporary protective layer during storage and transport.
- Pros: Lowest initial cost; easy to apply; can be formulated to be fire-resistant, a critical safety feature in underground mining.
- Cons: Provides only minimal corrosion resistance. The paint layer is soft and quickly abrades off as chain links rub against each other and sprockets during operation. It is a "cosmetic" barrier that is easily compromised, leading to rapid rusting. Requires frequent reapplication (every 2-3 years).
- Recommendation: Only suitable for dry environments with minimal abrasive wear. It is not recommended for longwall applications where chains are constantly in contact with water and wet coal.
2. Hot-Dip Galvanizing (HDG)
This process involves immersing the finished chain in a bath of molten zinc, creating a thick, metallurgically bonded zinc-iron alloy layer.
- Application: Widely used for underground mining chains in wet or corrosive environments, as the thick zinc layer provides excellent, long-lasting protection.
- Pros: Offers excellent corrosion resistance, with a protective lifespan of 5 to 10 years or more in typical underground conditions. It provides sacrificial protection, meaning the zinc corrodes preferentially to protect the steel even if the coating is scratched. Its performance in wet, humid conditions is well-proven.
- Cons: The primary drawback is that the high temperatures of the galvanizing bath (can weaken heat-treated steels by at least 10%) if not carefully controlled. Some manufacturers advise that hot-dip galvanization can result in decreased chain mechanical properties. It also adds a thick layer, which increases the actual chain diameter and may affect fit with sprockets. There is also a risk of hydrogen embrittlement if the process is not managed correctly.
- Recommendation: A preferred choice for highly corrosive underground environments. However, buyers must source from a reputable supplier who can provide a "de-hydrogenation" certificate to confirm the process did not compromise the chain's tensile strength or introduce hydrogen embrittlement.
3. Zinc Thermal Diffusion (Sheradizing / Heat Permeation)
This is a specific thermo-chemical treatment where zinc powder is diffused into the steel surface at high temperatures, forming a uniform zinc-iron alloy layer.
- Application: Specifically developed as an advanced anti-corrosion solution for high-strength mining chains in severe underground environments.
- Pros: Provides a more uniform coating than hot-dip galvanizing, with excellent corrosion resistance. Crucially, studies indicate that this treatment can significantly improve corrosion resistance while maintaining the chain's mechanical properties within standard requirements.
- Cons: More expensive and less common than standard HDG. Requires specialized equipment.
- Recommendation: An excellent, technically superior alternative to HDG for critical applications where preserving the chain's strength is paramount.
4. Phosphating (Phosphate Coating)
This is a chemical conversion coating that creates a thin, crystalline layer of phosphate on the steel surface.
- Application: Often used as a base layer for subsequent painting or oiling, or as a light-duty anti-corrosion and anti-galling treatment.
- Pros: Improves corrosion resistance slightly; provides a good base for paint adhesion; can reduce friction between links.
- Cons: The phosphate layer itself offers very limited corrosion protection and is not suitable as a standalone finish for harsh underground environments. It is a thin, porous layer that requires impregnation with oil or sealant to be effective.
- Recommendation: Not recommended as a primary corrosion barrier for longwall chains. Its best use is as a pretreatment for painting or as a friction-reducing layer in less aggressive conditions.
5. Black Oxide (Blackening / Parkerizing)
This process converts the surface into a layer of magnetite (black iron oxide).
- Application: Used for aesthetic purposes and for light-duty corrosion protection in dry indoor environments.
- Pros: Low cost; produces an attractive, uniform black finish; does not alter chain dimensions.
- Cons: Offers virtually no corrosion resistance on its own. The protection relies entirely on a coating of oil that is easily wiped or worn off. Once the oil film is compromised, the chain can start to rust within 24 hours. The protective lifespan is only 3-5 years, much shorter than galvanizing.
- Recommendation: Not suitable for mining chains. It is only recommended for dry indoor static applications.
6. Dacromet (Zinc-Aluminum Coating) / GEOMET®
Dacromet is a water-based coating containing zinc and aluminum flakes, applied by dipping or spraying and then cured. GEOMET® is a similar, more advanced chromium-free technology.
- Application: Growing in popularity for high-strength chains (G80/G100) in demanding environments.
- Pros: Offers exceptional corrosion resistance (salt spray tests over 1,000 hours); provides barrier, passivation, and cathodic protection. It has no risk of hydrogen embrittlement as it does not involve acid pickling, making it safer for high-strength steels. Excellent for high-end, high-strength chains.
- Cons: Higher initial cost than galvanizing.
- Recommendation: The preferred choice for critical, high-strength longwall chains in corrosive environments where safety and maximum service life are the priorities.
7. Electroplating (Nickel, Copper-Nickel, Chromium)
This involves using an electric current to deposit a thin layer of metal, such as nickel, chromium, or a copper-nickel alloy, onto the chain.
- Application: Used for specialized applications, such as ATEX-certified chains for high-sulfur coal mines where specific corrosion resistance is required. Nickel plating is chosen for its corrosion resistance in specific chemical environments.
- Pros: Can provide excellent, targeted corrosion resistance (e.g., against sulfides); offers a smooth, attractive finish.
- Cons: Coatings are very thin; can be expensive; and the electroplating process carries a high risk of hydrogen embrittlement due to the acid pickling step.
- Recommendation: A specialist solution for niche applications like high-sulfur coal mines, but the risk of hydrogen embrittlement means its use for critical load-bearing chains must be carefully considered.

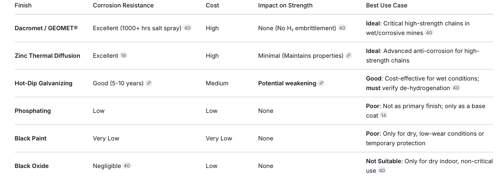

Summary & Recommendations
Choosing the right surface finish is a strategic decision based on cost, corrosion severity, and the need to preserve chain strength.
For longwall mining, where chains are subjected to a punishing combination of abrasion, impact, and corrosion, a finish that offers both high corrosion protection and zero risk of hydrogen embrittlement is essential. Dacromet and zinc thermal diffusion are therefore the most technically sound choices. If budget constraints favor a more conventional solution, hot-dip galvanizing is an option, but buyers must rigorously verify that the process does not degrade the chain's mechanical properties.
Post time: Sep-02-2026
