In the lifting chain industry, the overwhelming majority of end users evaluate quality through a single lens: minimum breaking force. A chain that passes the 4:1 safety factor test is deemed acceptable, and the conversation ends there. This perspective, while understandable, is dangerously incomplete. Breaking force tells you what a chain can endure once. Hardness and elongation tell you what that chain is—its microstructure, its heat treatment integrity, and how it will behave under repeated, dynamic, and wearing service conditions. At SCIC (www.scic-chain.com), we test all three parameters on every production lot precisely because one number alone cannot certify a lifting chain.

The Hardness–Strength Relationship: An Engineering Insight

For carbon and low-alloy steels, hardness and tensile strength are not independent variables; they are two expressions of the same underlying microstructure. An approximate engineering relationship widely used in metallurgy states that tensile strength (MPa) ≈ 3.4 × Brinell hardness (HBW). This means a G80 chain, typically hardened to 38–42 HRC (approximately 355–395 HBW), corresponds to a tensile strength in the range of 1,200–1,350 MPa—well above its 800 MPa minimum requirement. Grade 100, on the other hand, requires a Brinell hardness of 432 HBW or higher, translating to a tensile strength approaching 1,500 MPa.

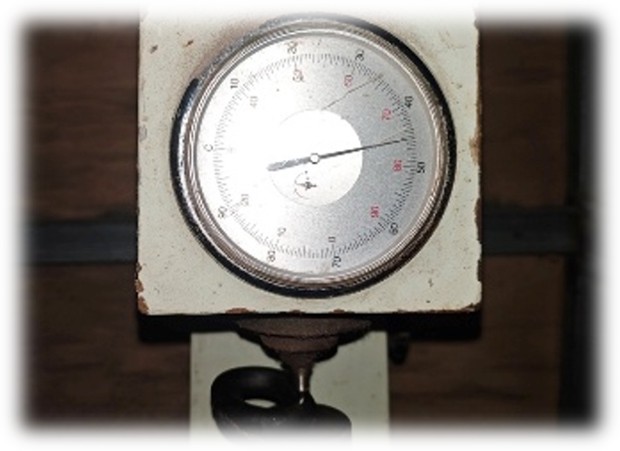

This is why hardness testing is not a redundant exercise. If a G80 chain measures 45 HRC, it is likely over-hardened—meaning insufficient tempering has left the microstructure brittle, with elongation that may fall below the required 20% minimum. Conversely, a G100 chain measuring only 35 HRC has almost certainly been over-tempered to boost ductility at the expense of its rated strength. In both cases, the breaking force might still meet the minimum, but the chain’s true safety margin and service behavior are compromised.

Material Selection: The Foundation of Hardness Control

Hardness begins long before the heat treatment furnace. G80 chains are typically produced from medium-carbon manganese steels such as 20Mn2 or 25MnV, which offer a favorable balance of hardenability and cost. G100 chains, however, demand high-strength low-alloy (HSLA) steels with chromium, molybdenum, and sometimes vanadium additions—such as SAE 8620—to achieve the fine-grained bainitic or martensitic microstructures required for 1,000 MPa minimum tensile strength while retaining acceptable ductility. These alloying elements form stable carbides that pin grain boundaries and impede dislocation motion, simultaneously raising yield strength and improving fatigue resistance.

Heat Treatment: The Lever That Defines the Grade

The transformation from soft pearlite-ferrite to high-performance tempered martensite occurs through three sequential stages: austenitization, quenching, and tempering. The critical insight—and the reason hardness testing is so revealing—is that the tempering temperature is the primary variable used to differentiate G80 from G100. Lower tempering temperatures preserve higher hardness and strength but reduce elongation; higher temperatures restore ductility at the cost of strength.

This creates a non-negotiable metallurgical constraint: a G100 chain cannot simultaneously achieve G80-level elongation and G100-level hardness. The standards acknowledge this. EN 818-2 permits a minimum elongation of 20% for G80 chains, while ASTM A973 allows 20% for Grade 100. A chain claiming G100 strength with G80-like ductility at the same diameter is metallurgically implausible without a change in material or geometry.

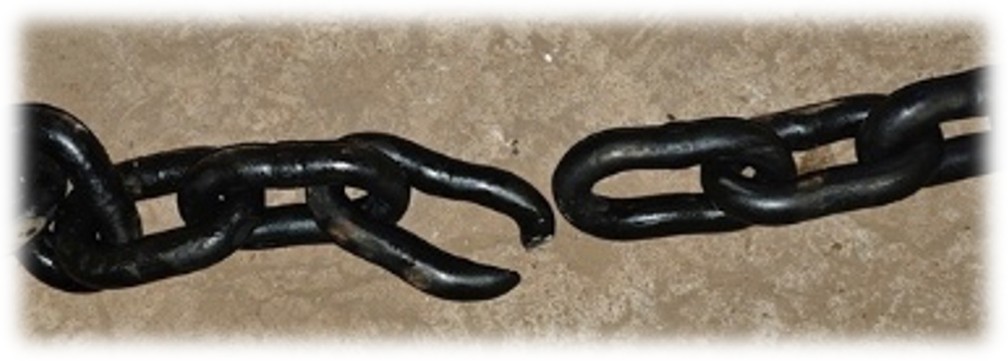

The danger of misrepresentation is acute. A chain that is quenched but not properly tempered may achieve G100 breaking force, but its elongation could drop to 5–8%, making it catastrophically brittle and prone to sudden failure without warning. This is precisely why SCIC verifies hardness alongside breaking force and elongation: only the triad confirms that the heat treatment has been correctly executed.

Wear Resistance: Where Hardness Directly Governs Service Life

In applications involving abrasion—hoist sprocket engagement, mining conveyors, or foundry duty—hardness is not merely an indicator of strength; it is the primary determinant of wear life. For hoist chains under EN 818-7, Type DAT and DT chains undergo surface hardening to achieve case hardnesses of 500–650 HV or higher, while the core remains at 40–45 HRC to retain toughness. This gradient structure allows the chain to resist pitch elongation and surface galling without becoming brittle. SCIC’s hardness testing protocols therefore measure not only bulk hardness but also, where applicable, surface and core hardness distributions to confirm that the hardening profile meets the application’s wear demands.

A lifting chain’s breaking force is a single snapshot; its hardness and elongation reveal the full metallurgical story. SCIC tests all three on every G80 and G100 lot because the standards demand it, because our clients’ safety depends on it, and because the industry’s tendency to focus solely on breaking force leaves a critical gap in quality assurance. When hardness, strength, and ductility are verified together, you know the chain is not merely strong enough to pass a test—it is properly engineered to perform, wear, and warn before failure.

Post time: Oct-03-2026
