In the demanding environment of cement plants, bucket elevators rely not only on robust round link chains but also on the critical connectors that serve as the indispensable interface between the chain and the buckets. These connectors, typically conforming to DIN 745 and DIN 5699 standards, are the mechanical bridges that transfer lifting forces from the chain to the buckets carrying abrasive materials such as clinker, limestone, and raw meal.
Industry leaders such as RUD, CICSA, and Heko have long specialized in these engineered components, applying advanced metallurgy and heat treatment processes to extend service life under the harshest conditions.
Standard Designs and Applications
Two primary connector standards dominate the cement industry:

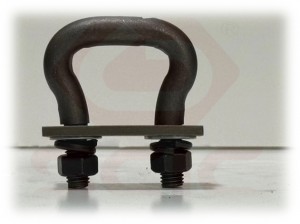

- DIN 745 shackles feature a U-type forged body with a distance plate and nut assembly, designed for general-purpose, high-load central chain elevators. These connectors directly attach buckets to the chain strands.

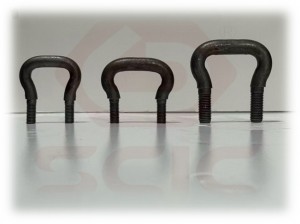

- DIN 5699 shackles offer a flatter profile and compact geometry, featuring longer threaded shanks that allow distance plates to be fitted between the bucket and the chain. This design provides better operating safety and improved breaking and fatigue resistance compared to DIN 745, making them suitable for tight bucket spacing and reduced pitch circle diameter (PCD) elevators.
Both standards are designed to work seamlessly with chain strands conforming to DIN 764 and DIN 766.
Material Selection and Forging Process
Unlike closed round link chains, connectors feature an open design with a removable cross pin, creating an inherent stress concentration point. To compensate for this, high-quality connectors are produced through precision drop forging using fine-grained alloy steels. Common materials include 45# heat-treatable steel, Cr-Mo (chromium-molybdenum) alloys, and Cr-Ni-Mo (chromium-nickel-molybdenum) alloy steels. The required connector grade determines the specific alloy steel selection. Drop forging aligns the grain flow with the connector's contour, significantly enhancing fatigue resistance under the continuous tensile and impact loads encountered in cement plant operations.
Critical Hardening and Quality Control
To ensure that connectors achieve wear resistance comparable to carburized round links, industry-leading manufacturers apply specialized localized hardening treatments at the interlink points of contact with the chain. These can be classified as:
- Edge-hardened / induction-hardened connectors: Through-hardened up to a material tensile strength of approximately 950–1100 N/mm², with inductive hardening at the interlink contact points achieving a surface hardness of at least 600 HV1 (55HRC).
- Case-hardened / carburized connectors: For the most severe abrasive applications, manufacturers such as Pewag offer additional carburizing, achieving surface hardness of 750 HV1 or higher at the interlink contact areas.
Key quality control parameters specified by major manufacturers include hardening depth (≥0.1×d), surface hardness (min. 600–750 HV1), and proof and breaking forces equal to or exceeding those of the largest chains they are matched with. Rigorous testing of surface quality and heat treatment parameters ensures consistent fatigue resistance across all production batches.
Operational Challenges and Replacement
While connectors are forged and selectively hardened to approach the strength of round links, they remain the system's weakest point due to their open geometry and threaded fasteners. The interlink contact zone between the connector and the chain link is one of the most highly stressed locations in the entire elevator system, making it prone to wear, fatigue cracking, and loosening of nuts under continuous vibration.
Common failure modes include:
- Surface wear: Abrasion at the interlink contact points, reducing the effective cross-sectional area
- Fatigue cracking: Cyclic stresses initiating cracks at stress concentration points, which propagate over time until fracture
- Fastener loosening: Vibration-induced loosening of nuts, often mitigated by self-lock nuts or spring washers
To mitigate these risks, threaded connections must be secured with appropriate blocking systems, and distance plates must be correctly fitted. The use of self-locking assemblies and were resistance to constant vibration and temperature cycles are essential design features for extended service life.
Industry experience suggests that while the chain itself may have a service life measured in hundreds of thousands of tons conveyed, bucket attachments and connectors may require replacement significantly earlier. Some field data indicates that bucket attachments may need replacement after approximately 400,000 tonnes of material handled, representing a valuable opportunity for plants to plan preventive maintenance and reduce the risk of unplanned downtime.
Round link chain connectors are engineered compromises—open in design yet required to withstand the same harsh friction, dynamic loading, and abrasive environments as the closed links they join. Through precision forging, optimized material selection, and selective case hardening (carburizing) at interlink points, leading manufacturers such as RUD, CICSA, and Heko produce connectors that deliver reliable performance under the high-impact, continuous-duty demands of cement plant bucket elevators. Routine inspection for wear at the interlink contact zones, verification of fastener security, and timely replacement based on tonnage conveyed are essential practices to prevent catastrophic failure and maximize system uptime.
