News - Essential Workshop Practices for Fabricating G80/G100 Chain Slings from Bulk Stock

For clients who purchase bulk G80 and G100 lifting chain by the lot, the ability to cut, assemble, and finish custom slings (single, 2-leg, 3-leg, or 4-leg) in your own warehouse offers significant flexibility. However, to ensure safety, regulatory compliance, and maximum service life, strict workshop discipline is required. Below is a critical guide for those new to this process, covering inspection, length control, injury prevention, and finishing.

1. Pre-Cutting Inspection (Receiving & Lot Release)

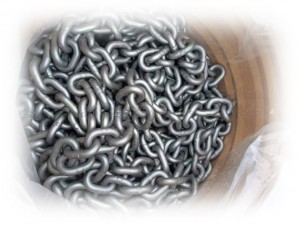

Before cutting a single link, perform a visual inspection of the entire incoming lot. Roll the chain out on a clean, flat surface. Reject any links showing visible cracks, deep nicks, necking (localized thinning), stretch (measure over a standard number of links), or heat damage (blue/black discoloration). Simultaneously, inspect all alloy components (master links, hooks, couplers) for forging flash, cracks, or deformities. Never assume bulk material is perfect—verify the batch certificate matches the physical stamp on the chain.

2. Chain Segment Control (Length Accuracy)

Chain slings fail prematurely when legs are uneven. Always measure under tension using a calibrated steel tape. For a given leg length (e.g., 1.5m), count the number of active links, but measure from the inside bearing point of the top coupling link to the inside bearing point of the hook. When cutting, use an abrasive cutoff wheel only—never oxy-acetylene torches or arc cutters, which create heat-affected zones (HAZ) that destroy Grade 80/100 heat treatment. After cutting, grind the burr flat and flush to avoid damaging the next link.

3. Preventing Injury to Links & Components

The most common new-client error is “hammer fitting.” Never force a coupler or hook into a chain link by hammering it closed; this creates micro-notches that become crack initiation sites. For G100, which has higher hardness, tool sharpness is critical—dull tools create stress risers. Also, ensure that coupling links are oriented correctly (pin engaged fully) and torque fasteners to the manufacturer’s spec.

4. Assembly & Length Equalization

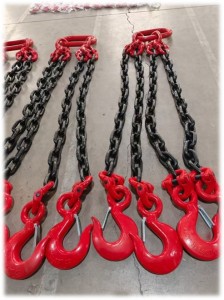

For multi-leg slings, cut all legs slightly long (e.g., +2 links) and adjust progressively. Assemble the top fitting (master link) first, then attach each leg. To equalize lengths, suspend the master link from a fixed point and hang identical test weights on each hook. Measure, disassemble, and trim the longer legs incrementally. Do not use twist or chain rotation to compensate for length errors—this introduces torque and reduces Working Load Limit (WLL).

5. Finishing & Tagging

Every finished sling requires a durable, legible tag (stainless steel or aluminum) stamped with: WLL for the specific configuration (vertical, choker, 60° basket), number of legs, chain grade (G80/G100), serial number, and date of manufacture. Attach the tag to the master link or a dedicated tag link—never to a coupler pin. After tagging, apply a light coat of penetrating lubricant to internal link bearings (not the exterior weld area) to reduce interlink wear.

6. Final Packing

Coil the sling neatly to avoid kinking. For multi-leg slings, bundle the hooks together with a plastic keeper or wire tie to prevent tangling. Pack in a dry crate or pallet with desiccant if shipping long distances. Include a packing slip noting that all slings are “new, unused, and proof-tested per ASME B30.10 or EN 818-4” (as applicable).

Critical Warning: Do not shorten a master link’s saddle to fit a chain—use the correct size coupler. And never weld a chain link for repair. If a link is damaged, remove that entire cut length and remake the leg.

By following these steps, new fabricators will avoid scrap losses, prevent workplace injuries, and produce slings that meet international standards. When in doubt, always consult the SCIC technical datasheet for your specific chain grade.
