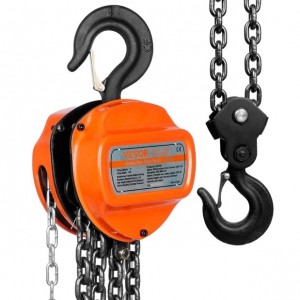

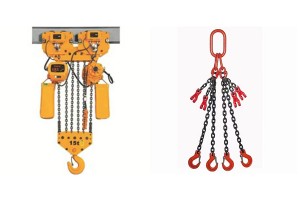

EN818-7 is the European standard that specifies safety requirements for fine tolerance hoist chains, Grade T, intended for use in serial chain hoists—both manual and power driven. Unlike general-purpose lifting chains covered under EN818-2 (which are medium-tolerance chains for slings and general lifting applications), EN818-7 chains are precision-engineered components that must integrate seamlessly with hoist sprockets, guide wheels, and load sheaves. The standard covers nominal sizes from 4 mm to 22 mm and defines three distinct chain types—T, DAT, and DT—each with specific mechanical properties, heat treatment regimes, and application profiles.
Chain Types and Applications
Type T chains are quenched and tempered throughout the link section, achieving uniform hardness from surface to core. These are the baseline Grade T hoist chains suitable for manual chain hoists and lighter-duty power driven applications where wear resistance requirements are moderate.
Type DAT and Type DT chains represent a significant step up in engineering complexity. Both are case hardened—meaning they possess surface hardnesses greater than core hardness—and are specifically intended for power driven chain hoists to offer greater resistance to wear. The distinction between DAT and DT lies in the severity of the case hardening: Type DT differs from DAT in having higher surface hardness and/or greater case depth to optimize wear resistance for the most demanding, high-cycle hoist applications. This surface hardening creates a wear-resistant exterior that withstands repeated engagement with sprocket teeth, while the tougher, more ductile core maintains resistance to impact and fatigue.
Dimensional Control: A Tighter Regime
The most fundamental difference between EN818-7 hoist chains and EN818-2 sling chains lies in dimensional precision. Hoist chains must operate within the tight clearances of hoist mechanisms—any deviation in pitch, internal width, or external width affects engagement with sprockets and can cause skipping, accelerated wear, or catastrophic failure. EN818-7 is explicitly titled "fine tolerance hoist chain", and this is reflected in the tolerances:
- Pitch tolerance for EN818-7 is typically divided into +2/3 and −1/3 of the specified value for both individual links and the standard gauge length.
- Internal width at the weld (w3) is measured at 1.2× the material diameter for hoist chains, compared to 1.3× for EN818-2 sling chains.
- External width over the weld (w2) is specified at 3.4× the material diameter, tighter than the 3.7× allowance for sling chains.
- Weld diameter (ds) is held to 1.08× the material diameter, versus 1.1× for EN818-2.
These tighter tolerances demand superior control over welding parameters, fixture accuracy, and post-weld calibration. Even minor variations in link geometry—which might be acceptable in a sling chain—can render a hoist chain non-functional.
Surface Hardness vs. Core Strength: The Metallurgical Challenge
The case hardening of DAT and DT chains presents a delicate metallurgical balancing act. The chain must simultaneously achieve:
1. High surface hardness (typically 360 HV minimum per DIN EN 818-7) to resist abrasive wear from sprocket engagement.
2. Sufficient core hardness and toughness to maintain the required minimum breaking force—equivalent to Grade 80 (G80) lifting chain standards—while providing the ductility to absorb shock loads.
3. Controlled case depth to ensure the hardened layer is deep enough for wear life but not so deep that it embrittles the link.
This is achieved through precise carburizing or carbonitriding processes, followed by quenching and tempering. The R-angles (bend radii) of the link require particular attention: EN818-7 hoist chains typically specify R-angle hardness of 40–46 HRC and straight-leg hardness of 37–40 HRC. The R-angle hardness is critical for wear resistance where the chain articulates over sprockets, while straight-leg hardness influences elongation characteristics. Elongation at break for EN818-7 hoist chains is specified at ≥10% (compared to ≥17% for EN818-2 sling chains)—a lower elongation that reflects the need for dimensional stability in hoist mechanisms.
The challenge for manufacturers is to achieve this surface hardness without compromising the minimum breaking force. As the chain is case hardened, the core must retain sufficient strength (typically achieved through alloy selection such as 20Mn2 and controlled quenching) to meet the 4:1 safety factor requirement. Over-hardening the surface can lead to reduced core toughness and premature fatigue failure; under-hardening results in inadequate wear life.
Inspection and Testing Regime
EN818-7 mandates rigorous verification of safety requirements, including:
- Dimensional inspection of every link or statistically sampled lots to verify compliance with fine tolerances.
- Proof load testing at 2 to 2.5 times the Working Load Limit (WLL).
- Breaking force tests to verify minimum breaking force (MBF).
- Surface hardness testing to confirm case hardening specifications.
- Metallographic examination to verify case depth and microstructure.
The Current State of Chinese Manufacturing
Despite China's established capabilities in G80 and G100 lifting chain production (EN818-2), the transition to EN818-7 hoist chains—particularly DAT and DT types—remains an ongoing journey for many domestic factories. The combination of tighter dimensional tolerances, challenging surface hardness requirements while maintaining minimum breaking force, and the need for consistent case depth control presents a steep learning curve. Many manufacturers are still stabilizing their quality control processes to meet the exacting demands of international hoist OEMs. However, with continued investment in precision welding equipment, case hardening furnaces, and in-process inspection systems, Chinese producers are progressively closing the gap and gaining recognition in the world market.
