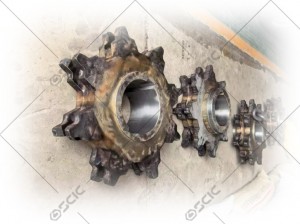

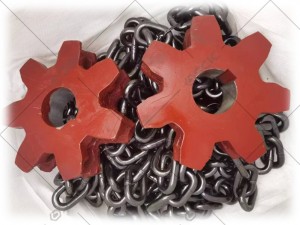

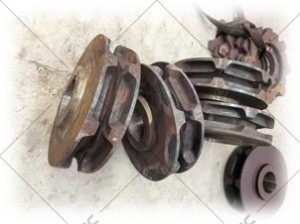

Round link chain sprockets, also widely referred to as chain wheels, are indispensable mechanical components in a vast array of heavy-duty industrial applications and materials handling. Their primary function is to engage precisely with round link chains to transmit motive power, guide the chain path, and ensure reliable material handling in some of the most demanding environments on earth.
Diverse Applications Across Industries
The versatility of round link chain sprockets is demonstrated by their presence in numerous critical sectors. In the coal mining industry, they are the driving force behind long wall coal mine conveyors, where they must withstand extreme loads, abrasive coal dust, and continuous operation. Cement plants rely on them for bucket elevators that lift raw materials and clinker, while thermal power plants use them in coal handling and slag removal conveyors, where high temperatures and abrasive by-products are common. Beyond these, they are found in lifting gears for hoisting heavy loads and even in niche applications such as aquaculture, where they are employed in mooring and pulling systems for fish pens and nets. In every case, the sprocket's design and construction must be tailored to the specific mechanical and environmental stresses of the application.
Steel Material Selection: The Foundation of Performance
The selection of appropriate steel is the starting point for producing a durable and reliable sprocket. The choice is governed by the need to balance multiple properties: tensile strength to withstand torque, toughness to resist impact from sudden loads, and hardness to combat abrasive wear from the chain links and conveyed material. Common steel grades include medium-carbon steels such as AISI 1045 (i.e., C45 or 45#), which offers a good balance of strength and machinability, and alloy steels like AISI 4140 (i.e., 42CrMo/SCM440/42CrMo4) or 4340 (i.e., 40CrNiMoA/SNCM439/36CrNiMo4), which provide enhanced hardenability, wear resistance, and impact toughness through the addition of elements like chromium, molybdenum, and nickel. For the most punishing applications, such as heavy mining, the material may be a boron-treated or micro-alloyed steel designed for superior strength-to-weight ratios and resistance to fatigue.
Casting vs. Forging: Choosing the Right Manufacturing Route
The method of production is a critical decision that directly impacts the sprocket's integrity. Forging involves shaping heated steel under high pressure, which refines the grain structure, eliminates internal porosity, and aligns the grain flow with the component's contours. This results in a sprocket with superior strength, toughness, and impact resistance, making forging the preferred choice for critical drive sprockets in high-load applications like long wall conveyors and lifting gears.
Casting, on the other hand, involves pouring molten steel into a mold. It is a highly cost-effective method for producing large, complex shapes or sprockets of significant size that would be prohibitively expensive to forge. While cast sprockets may have slightly lower mechanical properties than their forged counterparts, they are perfectly adequate for many applications, such as tail or idler sprockets and those used in less severe conditions.
Design Variations: Meeting Specific Operational Needs
Round link chain sprockets are available in a wide range of designs to suit different operational requirements:
- One-Piece Construction: These are single, solid units. They offer maximum strength and simplicity, making them ideal for smaller to medium-sized sprockets where a straightforward, robust solution is needed.

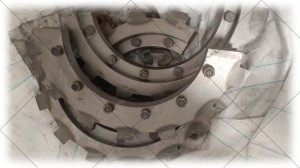

- Segmented Assembly: For very large sprockets, a segmented design is often employed. The rim, which contains the teeth, is manufactured as a separate ring that can be split into two or more segments. These segments are then bolted or keyed to a hub or central disc. This design facilitates handling and transportation and significantly reduces replacement costs, as only the worn rim segments need to be changed, not the entire hub.
- Protruded Teeth: Some designs feature teeth that are physically and metallurgically distinct from the main body, often created by specialized forming or machining processes. These teeth can be designed with enhanced wear-resistant profiles for extreme service conditions.
- Pocket Teeth vs. Key Teeth: The term "pocket teeth" refers to teeth that envelop the chain link, providing a more secure engagement and distributing loads across a larger area. "Key teeth" interact primarily with the chain sidebars, offering less aggressive engagement and are often used for tensioning or guiding.
Compatibility with Chain Sizes and Quality Assurance
A fundamental aspect of sprocket selection is ensuring perfect compatibility with the round link chain. The sprocket's geometry—specifically its pitch circle diameter (PCD), tooth profile, and root radius—is meticulously calculated to match the chain's pitch (the center-to-center distance between links) and link diameter. Standard chain sizes are specified by nominal diameter and pitch, and the sprocket must be manufactured to the corresponding dimensions for proper fit and engagement. Misalignment or incorrect sizing leads to rapid wear, chain jump, and premature failure.
All sprockets are subject to rigorous quality control, including dimensional inspection and, in many cases, a trial fit with the actual chain to verify smooth, binding-free operation. This ensures that the sprocket will deliver the long, dependable service life required in the most challenging industrial environments.
