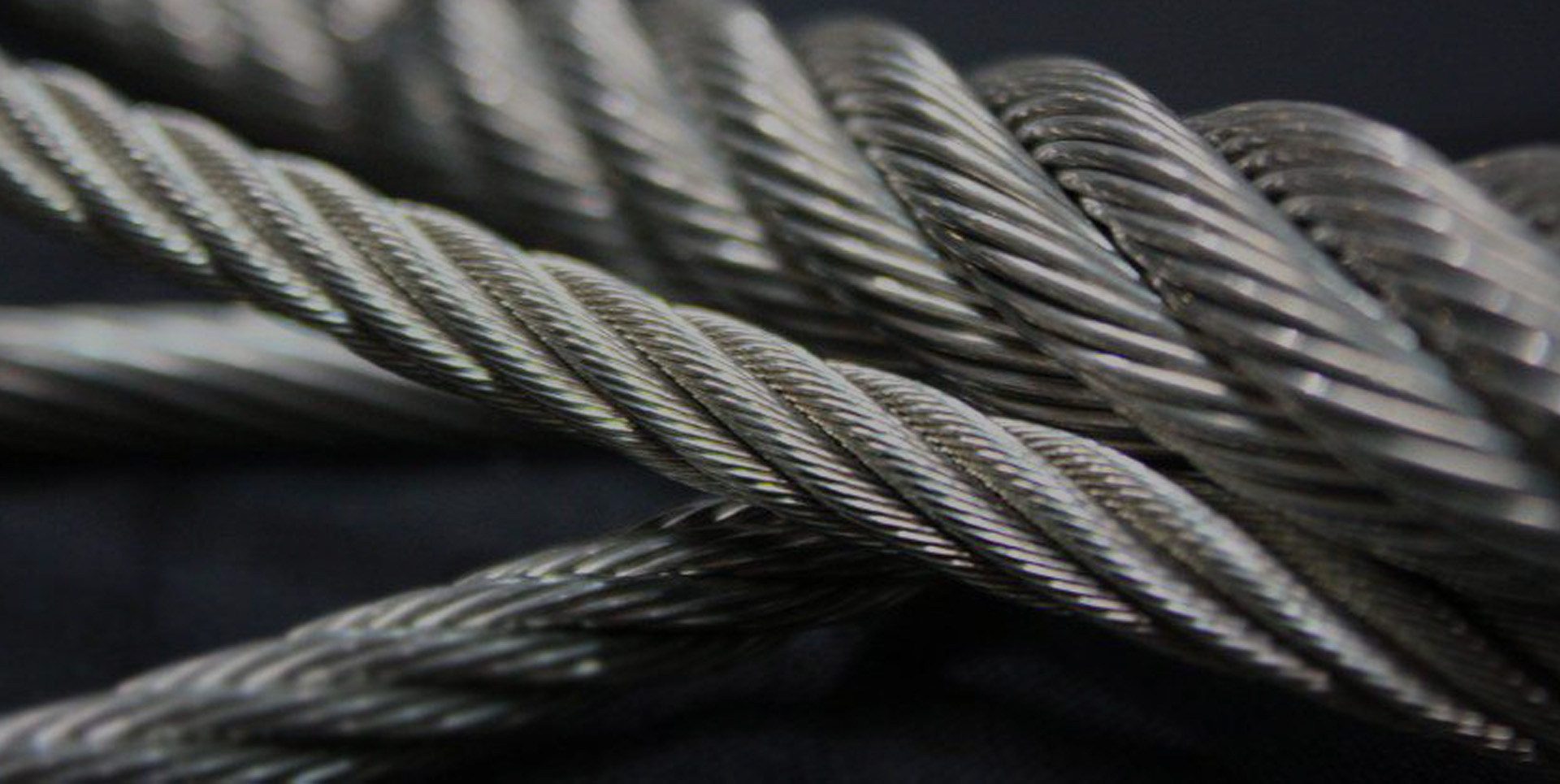

SCIC Steel Wire Ropes

Short Description:

SCIC supplies high-performance steel wire ropes engineered for critical applications across global industries. Manufactured from premium quality steel wires, our ropes are available in high tensile strength grades of 1770MPa, 1960MPa, and 2160MPa to meet diverse load and safety requirements.

Send email to us

Product Detail

Product Tags

Application

Lifting & Hoisting, Mooring and anchor lines, Rotary drilling lines, Tubing lines, Winch lines, Conveyor systems, Guy wires & tensioning, Cable pulling grips, Elevator ropes, Aerial tramways

35wx7-Compact-Strand-Wire-Rope-Steel-Wire-Rope

Related Products

Wire Rope Parameter

We offer a comprehensive range of standard and engineered constructions—including 6x19, 6x36, 7x7, and 8x19 class ropes—in various diameters and with core options like fiber (FC) or independent wire rope core (IWRC). This ensures the perfect technical match for specific needs, from general lifting to severe-duty service in mining, marine, crane, and oilfield operations.

Every SCIC wire rope undergoes rigorous full testing and inspection throughout production, verifying compliance with international standards (such as ISO 2408) and guaranteeing documented performance for safety and reliability. Built for durability in challenging environments, SCIC wire ropes deliver trusted performance for hoisting, mooring, pulling, and suspension applications worldwide.

Reference weight coefficient and minimum breaking force coefficient of steel wire rope (Table 1)

Wire rope type	Steel wire rope category	Natural fiber core steel wire rope		Steel core wire rope
		weight coefficient	Minimum breaking force coefficient	weight coefficient		Minimum breaking force coefficient
		W₁	K₁	W₂	W₃	K₂	K₃
Single layer steel wire rope	6x7	0.351	0.332	0.387	0.396	0.359	0.388
	6x12	0.251	0.209
	6x15	0.200	0.180
	6x19	0.380	0.330	0.418		0.356
	6x24	0.331	0.291
	6x36	0.380	0.330	0.418		0.356
	6x19M	0.351	0.307	0.400	0.381	0.332	0.362
	6x24M	0.381	0.280
	6x37M	0.346	0.295	0.400	0.381	0.319	0.346
	6x61M	0.361	0.283	0.398		0.306
	8x19M 8x37M	0.356	0.261	0.420		0.310
	8x7	0.327	0.291	0.391	0.464	0.359	0.404
	8x19	0.357	0.293	0.435		0.346
	8x36	0.357	0.293	0.435		0.346
	4x19 3x36	0.410	0.360
Irregular shaped steel wire rope	6xV7	0.412	0.375	0.437		0.398
	6xV19 6xV37	0.405	0.360	0.429		0.382
	6xV8	0.410	0.362
	6xV25	0.410	0.351
	4xV39	0.410	0.360
Rotation resistant steel wire rope	23x7			0.470		0.360
	18x7 18x19	0.390	0.310		0.430		0.328
	35(W)x735(W)x19				0.460		0.360^a0.350^b
	34(M)x7	0.400	0.308		0.430		0.318
Single strand steel wire rope	1x7				0.522		0.540
	1x19				0.507		0.530
	1x37				0.501		0.512
	1x61				0.487		0.510

Weight calculation: M=WD²

M——Reference weight per unit length of steel wire rope, unit: kg/100m;

D——The nominal diameter of the steel wire rope, measured in millimeters;

W——The reference weight coefficient for the nominal length of a certain structural category of uncoated steel wire rope is in kilograms per 100 square millimeters [kg/100m · mm²], and the K value is given in the coefficient table.

W1——It is the reference weight coefficient per unit length of fiber rope core steel wire rope.

W₂ ——It is the reference weight coefficient per unit length for Independent Wire Rope Core (IWRC) steel wire rope.

W₃ ——It is the reference weight coefficient per unit length of steel wire rope core (WSC) steel wire rope.

Calculation of breaking force: F₀=K・D²・R₀/1000

F₀——Minimum breaking force of steel wire rope, unit: KN;

D——The nominal diameter of the steel wire rope, measured in millimeters;

R₀——Steel wire rope grade;

K——It is the minimum breaking force coefficient for a given category of steel wire rope, and the K value is shown in the table.

K₁——It refers to the minimum breaking force coefficient of the fiber rope core steel wire rope;

K₂——It refers to the minimum breaking force coefficient of an independent steel wire rope core;

K₃——It refers to the minimum breaking force coefficient of a steel wire rope with steel wire strands as its core.

Table For Recommended Use of Steel Wire Ropes

shaft hoisting	Triangular strand steel wire rope	6xV37 6xV34 6xV30 6xV21 6xV43	Recommended same-way twist
	Line contact steel wire rope	6x19S 6x19W 6x25F 6x26WS 6x29F 6x31WS6x36WS 6x41WS	Recommended same-way twist
	Multi-layer stranded steel wire rope	18x7 17x7 35Wx7 24Wx7	Shaft for steel wire rope cage guide
	Multi-layer stranded steel wire rope	6Qx19+6Vx21 6Qx33+6Vx21	Shaft for steel wire rope cage guide
Excavate a shaft for hoisting (for shaft construction)	Multi-layer stranded steel wire rope and special-shaped stranded steel wire rope	17x7 18x7 34x7 36x74xV39S 4xV48S 35Wx7 24Wx7
shaft balance rope	wire rope	6x36WS 4xV39S 4xV48S	Only for interactive twisting
shaft balance rope	Multi-layer stranded steel wire rope	17x7 18x7 34x7 36x7 35Wx7 24Wx7	Only for interactive twisting
Inclined shaft hoisting (winch)	Triangular strand steel wire rope	6xV18 6xV19
Inclined shaft hoisting (winch)	Wire rope	6x7 6x9W	Recommended same-way twist
blast furnace hoist	Triangular strand steel wire rope	6xV37 6xV34 6xV30 6xV43
blast furnace hoist	Line contact steel wire rope	6x19S 6x25F 6x26WS 6x29F 6x31WS 6x36WS 6x41WS
Shaft cage guide and ropeway	Triangular strand steel wire rope	6xV18 6xV19
Shaft cage guide and ropeway	Multi-layer stranded steel wire rope	18x7 17x7	Recommended same-way twist
Open-air slope winch	Triangular strand steel wire rope	6xV37 6xV30 6xV34 6xV43
Open-air slope winch	Line contact steel wire rope	6x36WS 6x37S 6x41WS 6x49SWS 6x55SWS	Recommended same-way twist
oil extraction	Line contact steel wire rope	6X19S 6X19W 6x25F 6x26WS6x29F 6x31WS 6x36WS	Steel core can be used
Steel rope-drawn belt conveyors, ropeways, and ground cable cars	Line contact steel wire rope	6x19S 6x19W 6x25F 6x29F 6x26WS 6x31WS6x36WS 6x41WS	Recommended same-way twist
Excavator(electric shovel winch)	Line contact steel wire rope	6X19S+IWRC 6x25F+IWRC 6x19W+IWRC6x29+IWRC 6x26WS+IWRC 6x31WS+IWRC6x36WS+IWRC 6x55SWS+IWRC6x49SWS+IWRC 35Wx7 24Wx7	Recommended same-way twist
Excavator(electric shovel winch)	Triangular strand steel wire rope	6xV30 6xV34 6xV37 6xV43

Purpose		Name	Structure	Remark
crane	Large casting crane	Line contact steel wire rope	6x19S+IWRC 6x25F+IWRC 6x19W+IWRC6x36WS+IWR 6x41WS+IWRC
	Port handling, hydraulic engineering, and tower cranes used in construction	Multi-layer stranded steel wire rope	18x19S 18x19W 34x7 36x7 35Wx7 24Wx7
		Four-strand fan-shaped steel wire rope	4xV39S 4xV48S
	Busy lifting and other important purposes	Line contact steel wire rope	6x19S 6x19W 6x25F 6x29F 6x26WS 6x31WS6x36WS 6x41WS 6x49SWS 6x55SWS 8x19S 8xl9W8x25F 8x26WS 8x31WS 8x36WS 8x41WS 8x49SWS8x55SWS
	Busy lifting and other important purposes	Four-strand fan-shaped steel wire rope	4xV39S 4xV48S
Hot strip pusher (steel mill pusher table)		Line contact steel wire rope	6x19S+IWRC 6x19W+IWRC 6x25Fi+IWRC6x29F+IWRC 6x36WS+IWRC6x31WS+IWRC 6x37S+IWRC
ship loading and unloading		Line contact steel wire rope	6x19W 6x25F 6x29F 6x31WS 6x36WS	galvanizing
		Multi-layer stranded steel wire rope	18x19S 18X19W 34X7 36X7 35Wx7 24Wx7
		Four-strand fan-shaped steel wire rope	4xV39S 4xV48S
tugboat, cargo net		wire rope	6x31WS 6x36WS	galvanizing
Ship tensioning mast suspension bridge		wire rope	6x7+IWS 6x19S+IWRC	galvanizing
salvage sunken ships		wire rope	6x36WS 6x41WS 6x49SWS6x31WS 6X55SWS 8xl9S 8xl9W 8x31WS 8x36WS8x41WS 8x49SWS 8x55SWS	galvanizing

Annotation:

1. When corrosion is the primary reason for scrapping, galvanized steel wire ropes should be used.

2. In workplaces where the terminals of steel wire ropes cannot rotate freely or cannot be intertwined despite the presence of backlash force, steel wire ropes with the same direction of lay should be used.

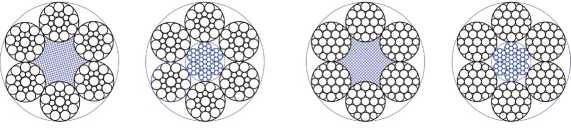

Type 6x19 General Purpose Steel Wire Rope

Structure：6x19S+FC 6x19S+IWRC 6x19W+FC 6x19W+IWRC

6x25F+FC 6x25F+IWRC 6x26WS+FC 6x26WS+IWRC

Execution standard：GB/T20118-2017

6x19S+FC 6x19S+IWRC 6x19W+FC 6x19W+IWRC

Nominal diameter (mm)	Reference weight /(kg/100m)		Nominal tensile strength of steel wire rope (MPa)
			1570		1770		1960		2160
			Minimum breaking force of steel wire rope (KN)
	Fiber-core steel wire rope SF	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire ropeFC	steel core wire rope IWRC	Fiber-core steel wire ropeFC	steel core wire rope IWRC
6	13.7	15.0	18.7	20.1	21.0	22.7	23.3	25.1	25.7	27.7
7	18.6	20.5	25.4	27.4	28.6	30.9	31.7	34.2	34.9	37.7
8	24.3	26.8	33.2	35.8	37.4	40.3	41.4	44.6	45.6	49.2
9	30.8	33.9	42.0	45.3	47.3	51.0	52.4	56.5	57.7	62.3
10	38.0	41.8	51.8	55.9	58.4	63.0	64.7	69.8	71.3	76.9
11	46.0	50.6	62.7	67.6	70.7	76.2	75.3	84.4	86.2	93.0
12	54.7	60.2	74.6	80.5	84.1	90.7	93.1	100	103	111
13	64.2	70.6	87.6	94.5	98.7	106	109	118	120	130
14	74.5	81.9	102	110	114	124	127	137	140	151
16	97.3	107	133	143	150	161	166	179	182	197
18	123	135	168	181	189	204	210	226	231	249
20	152	167	207	224	234	252	259	279	285	308
22	184	202	251	271	283	305	313	338	345	372
24	219	241	298	322	336	363	373	402	411	443
26	257	283	350	378	395	426	437	472	482	520
28	298	328	406	438	458	494	507	547	559	603
32	389	428	531	572	598	645	662	715	730	787
36	492	542	671	724	757	817	838	904	924	997
44	736	809	1000	1080	1130	1220	1250	1350	1380	1490
48	876	963	1190	1290	1350	1450	1490	1610	1640	1770
52	1030	1130	1400	1510	1580	1700	1750	1890	1930	2080
56	1190	1310	1620	1750	1830	1980	2030	2190	2240	2410

Annotation:

The total minimum breaking force of steel wires = the minimum breaking force of the steel wire rope x 1.214 (for fiber core) or x 1.308 (for steel core).

Type 6x19M General Purpose Steel Wire Rope

Structure：6x19M+FC 6x19M+IWRC

Execution standard：GB/T20118-2017

6x19M + FC

6x19M + IWRC

Nominal diameter (mm)	Reference weight(kg/100m)		Nominal tensile strength of steel wire rope（MPa）
			1570		1770		1960
			Minimum breaking force of steel wire rope（KN）
	Fiber-core steel wire rope SF	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC
3	3.16	3.60	4.34	4.69	4.89	5.29	5.42	5.86
4	5.62	6.40	7.71	8.34	8.69	9.40	9.63	10.4
5	8.78	10.0	12.0	13.0	13.6	14.7	15.0	16.3
6	12.6	14.4	17.4	18.8	19.6	21.2	21.7	23.4
7	17.2	19.6	23.6	25.5	26.6	28.8	29.5	31.9
8	22.5	25.6	30.8	33.4	34.8	37.6	38.5	41.6
9	28.4	32.4	39.0	42.2	44.0	47.6	48.7	52.7
10	35.1	40.0	48.2	52.1	54.4	58.8	60.2	65.1
11	42.5	48.4	58.3	63.1	65.8	71.1	72.8	78.7
12	50.5	57.6	69.4	75.1	78.2	84.6	86.6	93.7
13	59.3	67.6	81.5	88.1	91.8	99.3	102	110
14	68.8	78.4	94.5	102	107	115	118	128
16	89.9	102	123	133	139	150	154	167
18	114	130	156	169	176	190	195	211
20	140	160	193	208	217	235	241	260
22	170	194	233	252	263	284	291	315
24	202	230	278	300	313	338	347	375
26	237	270	326	352	367	397	407	440
28	275	314	378	409	426	461	472	510
32	359	410	494	534	557	602	616	666
36	455	518	625	676	704	762	780	843
40	562	640	771	834	869	940	963	1041
44	680	774	933	1010	1050	1140	1160	1260
48	809	922	1110	1200	1250	1350	1390	1500
52	949	1080	1300	1410	1470	1590	1630	1760

Type 6x36M General Purpose Steel Wire Rope

Nominal diameter (mm)	Reference weight(kg/100m)		Nominal tensile strength of steel wire rope (MPa)
			1570		1770		1960		2160
			Minimum breaking force of steel wire rope (KN)
	Fiber-core steel wire rope SF	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWR	Fiber-core steel wire rope FC	steel core wire rope IWR	Fiber-core steel wire rope FC	steel core wire rope IWR	Fiber-core steel wire rope FC	steel core wire rope IWR
8	24.3	26.8	33.2	35.8	37.4	40.3	41.4	44.7	45.6	49.2
10	38.0	41.8	51.8	55.9	58.4	63.0	64.7	69.8	71.3	76.9
12	54.7	60.2	74.6	80.5	84.1	90.7	93.1	100	103	111
13	64.2	70.6	87.6	94.5	98.7	106	109	118	120	130
14	74.5	81.9	102	110	114	124	127	137	140	151
16	97.3	107	133	143	150	161	166	179	182	197
18	123	135	168	181	189	204	210	226	231	249
20	152	167	207	224	234	252	259	279	285	308
22	184	202	251	271	283	305	313	338	345	372
24	219	241	298	322	336	363	373	402	411	443
26	257	283	350	378	395	426	437	472	482	520
28	298	328	406	438	458	494	507	547	559	603
30	342	376	466	503	526	567	582	628	642	692
32	389	428	531	572	598	645	662	715	730	787
34	439	483	599	646	675	728	748	807	824	889
36	492	542	671	724	757	817	838	904	924	997
38	549	604	748	807	843	910	934	1010	1030	1110
40	608	669	829	894	935	1010	1030	1120	1140	1230
42	670	737	914	986	1030	1110	1140	1230	1260	1360
44	736	809	1000	1080	1130	1220	1250	1350	1380	1490
46	804	884	1100	1180	1240	1330	1370	1480	1510	1630
48	876	963	1190	1290	1350	1450	1490	1610	1640	1770
50	950	1040	1300	1400	1460	1580	1620	1740	1780	1920
52	1030	1130	1400	1510	1580	1700	1750	1890	1930	2080
54	1110	1220	1510	1630	1700	1840	1890	2030	2080	2240
56	1190	1310	1620	1750	1830	1980	2030	2190	2240	2410
58	1280	1410	1740	1880	1960	2120	2180	2350	2400	2590
60	1370	1500	1870	2010	2100	2270	2330	2510	2570	2770

Annotation

The total minimum breaking force of steel wires=the minimum breaking force of steel wire rope x1.226 (fiber core) or x1.321 (steel core), where the 6x37S fiber core is 1.191 and the steel core is 1.283.

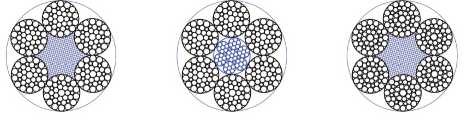

Structure

6X29F+FC 6X29F+IWRC 6X31WS+FC

6x31WS+IWRC 6X36WS+FC

6x36WS+IWRC 6x37FS+FC 6x37FS+IWRC

6x41WS+FC 6x41WS+IWRC 6x49SWS+FC

6X49SWS+IWRC 6x55SWS+FC 6x55SWS+IWRC

execution standard

GB/T20118-2017

Type 6x37M General Purpose Steel Wire Rope

Structure: 6X37M+FC 6X37M+IWRC

Execution standard: GB/T20118-2017

6x37M+FC 6x37M+IWRC

Nominal diameter (mm)	Reference weight (kg/100m)		Nominal tensile strength of steel wire rope (MPa)
			1570		1770		1960
			Minimum breaking force of steel wire rope (KN)
	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC

5	8.56	10.0	11.6	12.5	13.1	14.1	14.5	15.6
6	12.5	14.4	16.7	18.0	18.8	20.3	20.8	22.5
7	17.0	19.6	22.7	24.5	25.6	27.7	28.3	30.6
8	22.1	25.6	29.6	32.1	33.4	36.1	37	40
9	28.0	32.4	37.5	40.6	42.3	45.7	46.8	50.6
10	34.6	40.0	46.3	50.1	52.2	56.5	57.8	62.5
11	41.9	48.4	56.0	60.6	63.2	68.3	70.0	75.7
12	49.8	57.6	66.7	72.1	75.2	81.3	83.3	90.0
13	58.5	67.6	78.3	84.6	88.2	95.4	97.7	106
14	67.8	78.4	90.8	98.2	102	111	113	123
16	88.6	102	119	128	134	145	148	160
18	112	130	150	162	169	183	187	203
20	138	160	185	200	209	226	231	250
22	167	194	224	242	253	273	280	303
24	199	230	267	288	301	325	333	360
26	234	270	313	339	353	382	391	423
28	271	314	363	393	409	443	453	490
32	354	410	474	513	535	578	592	640
36	448	518	600	649	677	732	749	810
40	554	640	741	801	835	903	925	1000
44	670	774	897	970	1010	1090	1120	1210
48	797	922	1070	1150	1200	1300	1330	1440
52	936	1082	1250	1350	1410	1530	1560	1690
56	1090	1254	1450	1570	1640	1770	1810	1960
60	1250	1440	1670	1800	1880	2030	2080	2250

Annotation

The total minimum breaking force of steel wires = the minimum breaking force of steel wire rope x 1.249 (fiber core) or x 1.336 (steel core)

Type 18x7 and 18x19 Steel Wire Rope for Critical Applications

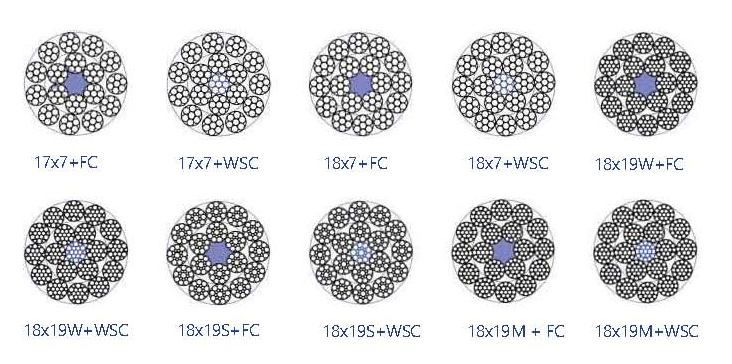

Structure: 17X7+FC 17x7+WSC 18x7+FC 18x7+WSC 8x19W+FC 18x19W+WSC 18x19S+FC 18X19S+WSC 18x19M+FC 18x19M+WSC

Execution standard: GB/T20118-2017

Nominal diameter (mm)	Reference weight (kg/100m)		Nominal tensile strength of steel wire rope (MPa)
			1570		1770		1960		2160
			Minimum breaking force of steel wire rope (KN)
D	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC
12	56.2	61.9	70.1	74.2	79.0	83.6	87.5	92.6	96.4	102
13	65.9	72.7	82.3	87.0	92.7	98.1	103	109	113	120
14	76.4	84.3	95.4	101	108	114	119	126	131	139
16	99.8	110	125	132	140	149	156	165	171	181
18	126	139	158	167	178	188	197	208	217	230
20	156	172	195	206	219	232	243	257	268	283
22	189	208	236	249	266	281	294	311	324	343
24	225	248	280	297	316	334	350	370	386	408
26	264	291	329	348	371	392	411	435	453	479
28	306	337	382	404	430	455	476	504	525	555
30	351	387	438	463	494	523	547	579	603	638
32	399	440	498	527	562	594	622	658	686	725
36	505	557	631	667	711	752	787	833	868	918
40	624	688	779	824	878	929	972	1030	1070	1130
44	755	832	942	997	1060	1120	1180	1240	1300	1370
48	899	991	1120	1190	1260	1340	1400	1480	1540	1630
52	1050	1160	1320	1390	1480	1570	1640	1740	1810	1920
56	1220	1350	1530	1610	1720	1820	1910	2020	2100	2220
60	1400	1550	1750	1850	1980	2090	2190	2310	2410	2550

Annotation

The total minimum breaking force of steel wires = the minimum breaking force of the steel wire rope x 1.283, where 17x7 is 1.250.

Type 35(W)x7 Steel Wire Rope for Critical Applications

Structure: 35(W)X7
Execution standard: GB/T20118-2017

Nominal diameter (mm)	Reference weight (kg/100m)	Nominal tensile strength of steel wire rope (Mpa)
Nominal diameter (mm)		1570	1770	1960	2160
D		Minimum breaking force of steel wire rope (KN)
12	66.2	81.4	91.8	102	109
14	90.2	111	125	138	148
16	118	145	163	181	194
18	149	183	206	229	245
20	184	226	255	282	302
22	223	274	308	342	366
24	265	326	367	406	435
26	311	382	431	477	511
28	361	443	500	553	593
30	414	509	573	635	680
32	471	579	652	723	774
36	596	732	826	914	980
40	736	904	1020	1130	1210
44	891	1090	1230	1370	1460
48	1060	1300	1470	1630	1740
52	1240	1530	1720	1910	2040
56	1440	1770	2000	2210	2370
60	1660	2030	2290	2540	2720

Annotation
The total minimum breaking force of steel wires = the minimum breaking force of the steel wire rope x 1.287

Type 4xV39 Steel Wire Rope for Critical Applications

Structure: 4XV39FC-FC 4XV48SFC-FC

Execution standard: GB/T20118-2017

4xV39FC-FC 4xV48SFC-FC

Nominal diameter (mm)	Reference weight (kg/100m)	Nominal tensile strength of steel wire rope (MPa)
Nominal diameter (mm)	Reference weight (kg/100m)	1570	1770	1960
D	Fiber-core steel wire rope NF	Minimum breaking force of steel wire rope (KN)
10	41	56.5	63.7	70.6
11	49.6	68.4	77.1	85.4
12	59.0	81.4	91.8	102
13	69.3	95.5	108	119
14	80.4	111	125	138
16	105	145	163	181
18	133	183	206	229
20	164	226	255	282
22	198	274	308	342
24	236	326	367	406
26	277	382	431	477
28	321	443	500	553
30	369	509	573	635
32	420	579	652	723
34	474	653	737	816
36	531	732	826	914
38	592	816	920	1020
40	656	904	1020	1130
44	794	1090	1230	1370
48	945	1300	1470	1630

Annotation

The total minimum breaking force of steel wires = the minimum breaking force of the steel wire rope x1.191

Type 6x36 Round Strand Steel Wire Rope with large dia

Structure: 6x36WS + FC 6x36WS+IWRC

6X41WS+FC 6X41WS+IWRC

6X46WS+FC 6X46WS + IWRC

6x49SWS+FC 6X49SWS+IWRC

6x55SWS+FC 6X55SWS+IWRC

Execution standard: GB/T20067-2017

6x36WS+aFC 6x36WS+IWRC 6x41WS + FC

6x41WS+IWRC 6x49SWS+FC 6x49SWS+IWRC

Nominal diameter (mm)	Reference weight(kg/100m)		Nominal tensile strength of steel wire rope (MPa)
			1570		1770		1960
			Minimum breaking force of steel wire rope（KN）
	Fiber-core steel wire rope CF	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC

60	1380	1500	1870	2010	2100	2270	2330	2510
64	1570	1710	2120	2290	2390	2580	2650	2860
68	1770	1930	2400	2580	2700	2910	2990	3230
72	1990	2170	2690	2900	3030	3270	3350	3620
76	2210	2410	2990	3230	3370	3640	3740	4030
80	2450	2680	3320	3580	3740	4030	4140	4470
84	2700	2950	3660	3940	4120	4450	-	4920
88	2970	3240	4010	4330	4520	4880	-	5400
92	3240	3540	4390	4730	4940	5330	-	5910
96	3530	3850	4770	5150	5380	5810	-	6430
100	3830	4180	5180	5590	5840	6300	-	6980
104	4140	4520	5600	6050	6320	6820	-	7550

Annotation

The total minimum breaking forces of steel wires = the minimum breaking force of the steel wire rope x 1.226 (for fiber core) or x 1.321 (for steel core).

Type 8x36, 8x61 Round Strand Steel Wire Rope with large dia

Structure:

8X36WS+FC 8X36WS+IWRC

8X41WS+FC 8X41WS+IWRC

8X49SWS+FC 8X49SWS+IWRC

8x55SWS+FC 8X55SWS+IWRC

Execution standard:

GB/T20067-2017

8x55SWS + FC 8x55SWS + IWRC 8x61FWS+FC

8x61FWS+IWRC 8x64SFS+FC 8x64SFS+IWRC

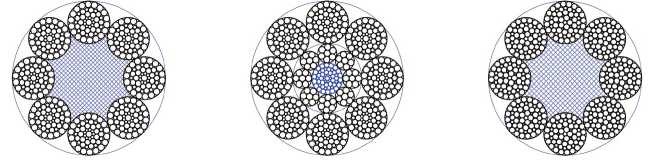

Type 8x36

Nominal diameter (mm)	Reference weight (kg/100m)		Nominal tensile strength of steel wire rope (MPa)
			1570		1770		1960
			Minimum breaking force of steel wire rope (KN)
	Fiber-core steel wire rope CF	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC

60	1370	1600	1660	1960	1870	2200	2070	2440
64	1540	1820	1880	2230	2120	2510	2350	2780
68	1730	2060	2130	2510	2400	2830	2660	3140
72	1940	2310	2380	2820	2690	3170	2980	3520
74	2080	2490	2520	2970	2840	3350	3140	3710
76	2170	2570	2660	3140	3000	3540	3320	3920
80	2430	2910	2940	3480	3320	3920	3680	4340
84	2650	3140	3250	3830	3660	4320	-	4790
88	2900	3450	3562	4210	4020	4740	-	5250
92	3170	3770	3890	4600	4390	5180	-	5740
96	3460	4100	4240	5010	4780	5640	-	6250
100	3750	4450	4600	5430	5190	6120	-	6780
104	4060	4810	4980	5880	5610	6620	-	-
108	4370	5190	5370	6340	6050	7140	-	-
112	4700	5580	5770	6810	6510	7680	-	-
116	5050	5990	6190	7310	6980	8240	-	-
120	5400	6410	6620	7820	7470	8820	-	-

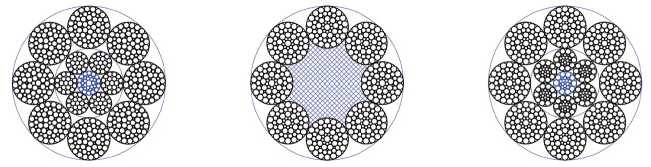

Type 8x61

Structure:

8X61FWS+FC 8X61FWS+IWRC

8x64SFS+FC 8x64SFS+IWRC

Execution standard: GB/T20067-2017

Nominal diameter (mm)	Reference weight (kg/100m)		Nominal tensile strength of steel wire rope (MPa)
			1570		1770		1960
			Minimum breaking force of steel wire rope （KN）
	Fiber-core steel wire rope CF	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC	Fiber-core steel wire rope FC	steel core wire rope IWRC
68	1760	2100	2130	2510	2400	2830	2660	3140
72	1970	2360	2380	2820	2690	3170	2980	3520
76	2190	2630	2660	3140	3000	3540	3320	3920
80	2430	2910	2940	3480	3320	3920	3680	4340
84	2680	3210	3250	3830	3660	4320	4050	4790
88	2940	3520	3560	4210	4020	4740	4450	5250
92	3220	3850	3890	4600	4390	5180	4860	5740
96	3500	4190	4240	5010	4780	5640	5290	6250
100	3800	4550	4600	5430	5190	6120	5740	6780
104	4110	4920	4980	5880	5610	6620	6210	7330
108	4430	5310	5370	6340	6050	7140	-
112	4770	5710	5770	6810	6510	7680	-	-
116	5110	6120	6190	7310	6980	8240	-
120	5470	6550	6620	7820	7470	8820	-	-
124	-	7000	-	8350	-	9420	-
130	-	7690	-	9180	-	10300	-	-
136	-	8420	-	10000	-	11300	-	-

Annotation
The total minimum breaking forces of steel wires = the minimum breaking force of the steel wire rope x 1.234 (for fiber core) or x 1.374 (for steel core).
