Pump Lifting Chains – Dia 4 to 20mm SS304, SS316, SS316L Stainless Steel Chain: Engineered for Safety and Efficiency

Short Description:

Designed for the unique challenges of submersible pump maintenance, SCIC’s stainless steel lifting chains ensure safety and reliability in the world’s most critical water and wastewater applications.

Materials: SS304, SS316, SS316L Stainless Steel

Safe Working Load: Up to 8,000 kg (higher capacities available upon request)

Length: Custom-made to your exact specifications

Custom Solutions: We specialize in made-to-order assemblies with oversized components for specialized applications.

Surface treatment: bright polished – for highest corrosion resistance

Safety factor: 4

Send email to us

Product Detail

Company Profile

Product Tags

Application

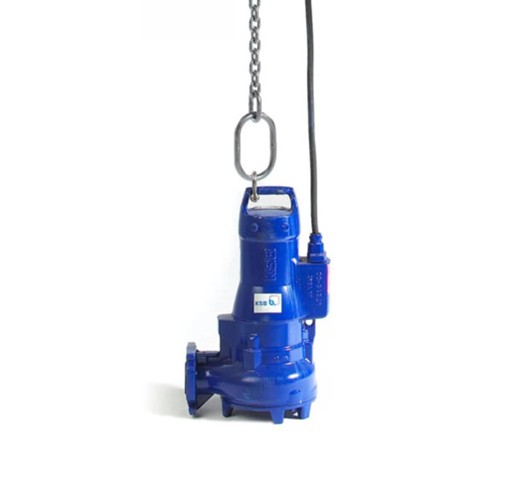

SCIC Pump Lifting Chain Slings: Engineered for Safety and Efficiency

Designed for the unique challenges of submersible pump maintenance, SCIC's stainless steel lifting chains ensure safety and reliability in the world's most critical water and wastewater applications.

Built to Withstand Corrosive Environments

We manufacture our chains from high-grade stainless steel—SS304, SS316, or SS316L—for maximum corrosion resistance. This makes them essential for long-term use in boreholes, water treatment plants, and other aggressive below-ground environments.

Related Products

Mining Chains

Chain Slings

Fishing Chains

Conveyor & Elevator Chains

Chain Parameter

This solves a critical operational problem: when using a portable tripod and hoist, the pump can only be lifted the height of the tripod (e.g., 2 meters). Our design allows workers to securely anchor the chain at the next master link, reposition the hoist, and continue lifting. This repeatable process makes retrieving pumps from any depth both safe and practical.

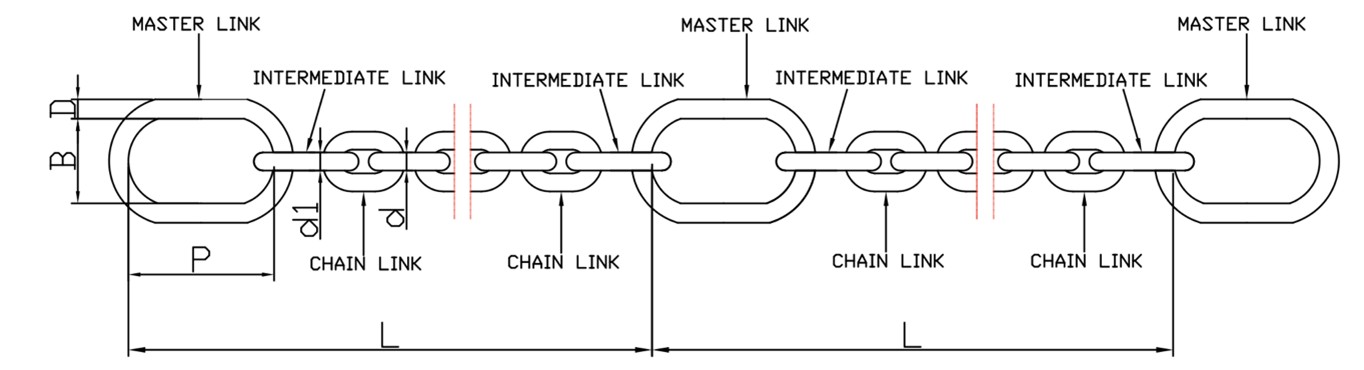

Figure 1: Pump lifting chain dimensions

Table 1: Pump lifting chain dimensions

Chain dia., d(mm)	WLL (kg)	Intermediate Link dia., d1 (mm)	Master Link			L (mm)	Weight (kg/m)
Chain dia., d(mm)	WLL (kg)	Intermediate Link dia., d1 (mm)	D (mm)	B (mm)	P (mm)	L (mm)	Weight (kg/m)
4	300	5	8	17	36	1000	0.40
5	500	6	10	50	80	1000	0.65
6	750	8	13	60	110	1000	0.85
7	1000	8	13	60	110	1000	1.20
8	1250	10	16	60	110	1000	1.50
10	2000	13	18	75	135	1000	2.50
13	3200	16	22	90	160	1000	4.20
16	5000	20	24	90	160	1000	6.10
18	6300	22	26	100	180	1000	7.80
20	8000	26	30	110	200	1000	9.00
