The fatigue life of Armored Face Conveyor (AFC) chains is a critical determinant of equipment reliability and coal output in longwall mining. AFC and chain-related failures can account for approximately 27% of total downtime, with improper mining chain tension being a primary contributor. This paper provides an in-depth investigation into the fatigue mechanisms of round link and flat link chains, reviews advanced life prediction methodologies, and offers targeted technical consultancy for mining chain manufacturers and coal mine operators. The goal is to enhance mining chain service life through design optimization, advanced monitoring, and scientific maintenance strategies, thereby ensuring high-production efficiency.

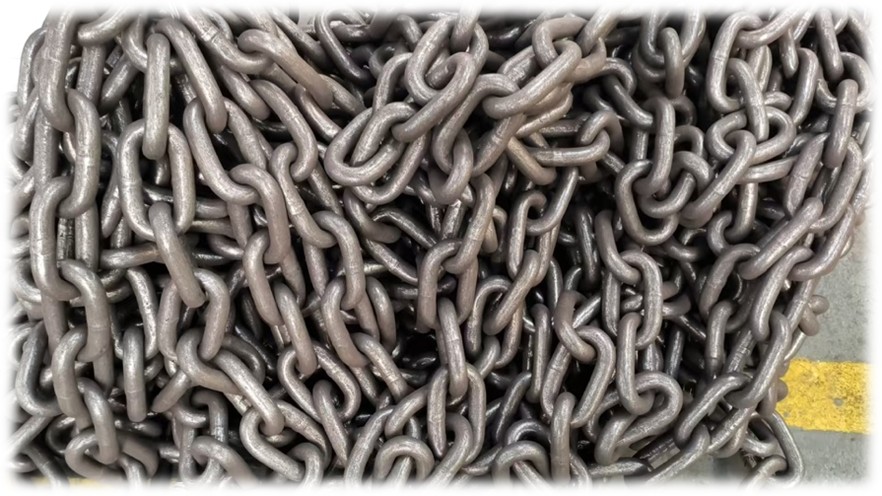

- Round Link Chains: Feature a symmetrical, flexible design. However, the small contact area between links results in very high contact stress and localized wear.
- Flat Link Chains: The connectors in flat link systems are identified as critical weak points. Finite Element Analysis (FEA) shows that stress in flat links concentrates at the link shoulder, the outer bend, and the inner straight arm. Under identical loads, deformation at contact points in flat links can be approximately 1.9 times that of round links, making them more sensitive to local wear.
2.2 Primary Failure Mechanisms
Fatigue failure results from the combined effects of mechanical stress, wear, and material degradation:
- Fatigue Fracture: Cyclic loading initiates micro-cracks at stress concentration points (e.g., contact points in round links, connector tooth roots in flat links), leading to brittle fracture. Research indicates that wear significantly alters link geometry, exacerbating stress concentration and creating a detrimental "wear-fatigue" cycle.
- Abrasive Wear: The predominant wear mechanism leading to cross-sectional loss and strength reduction. Critical wear zones are located at link joints, the outer arc surface, and the outer side of the straight sections.
- Overload and Impact: Instantaneous overloading from changing face conditions (e.g, a jam) can cause direct plastic deformation or fracture of the chain links.
2.3 Advanced Life Prediction Methodologies
Computer-based prediction is now vital for research and development.
- Finite Element Analysis (FEA): Accurately calculates the distribution of equivalent alternating stress under load, generating life contour maps to visually identify weak spots. Studies confirm FEA's strong feasibility for predicting round link chain fatigue life.
- Damage Theory Models: Linear Cumulative Damage Theory (e.g., Miner's Rule) and the Theory of Relative Similarity of Damage are applied to mining chain life modeling. The latter, by establishing correlations with known damage processes, offers an effective mathematical model for assessing round link chain life under complex load spectra.
- Topology Optimization and Lightweighting: Utilize FEA-driven topology optimization for chain links and connectors (especially flat link connector teeth) to achieve uniform stress distribution. Validate the uniformity and reasonableness of fatigue life in optimized designs through calculation.

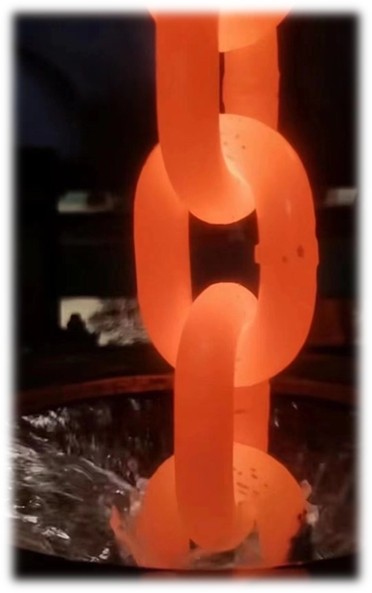

- Material Science and Heat Treatment Innovation: Increasing the content of alloying elements (Cr, Ni, Mn, Mo) and employing optimized heat treatment (e.g., quenching and tempering) can enhance wear resistance by 10-25%. For extreme conditions, specialized coatings (e.g., anti-corrosion) or stainless-steel grades should be considered.
- Connector Reliability Engineering: Connectors must meet high strength, detachability, and articulation requirements. Designs should strictly adhere to standards like DIN 22258-3, with optimization focused on achieving even stress distribution across multi-tooth configurations—a key to overall system reliability.
3.2 For Coal Mine Operators: Smart Monitoring, Maintenance, and Procurement
- Implement Intelligent Mining Chain Tension Monitoring: Traditional methods inferring tension from motor current are imprecise. The adoption of online tension meters installed on flight bars is recommended to monitor real-time tension distribution across the face. Integrating this data into the longwall control system for automatic tension regulation is fundamental to preventing over- or under-tensioning.
- Establish a Predictive Maintenance Regime: Develop a mining chain remaining-life prediction model by integrating real-time tension data, historical production tonnage, and regular dimensional checks of link wear zones. This enables scientific chain replacement scheduling, avoiding both premature replacement and catastrophic failure.
- Procurement and Operational Strategy for Ultra-Long Faces: For face equipment exceeding 400 meters, specifying lightweight chain-and-flight assemblies, intelligent multi-drive synchronization control, and high-reliability haulage systems must be core technical requirements to address challenges like high no-load power, difficult heavy-load starts, and accelerated wear.
