In the logistics and transportation sectors, the securement of cargo is not merely a procedural step; it is the critical barrier between safe delivery and catastrophic failure. While often visually similar to lifting chains, lashing chains and tie-down chains (collectively referred to as transport chains) serve a distinct and vital purpose. They are engineered specifically for securing heavy loads during transit, not for overhead lifting.
As noted in the field, these chains operate adjacent to lifting chains in terms of the consequences of failure—the stakes involve human safety and the integrity of often super-costly cargo. An accident resulting from chain breakage can lead to severe human injury, vehicle damage, and total cargo loss. Therefore, the quality of the metallurgy and the precision of the heat treatment are paramount. However, the hardware alone is insufficient; the methodology of application, guided by engineering principles and field experience, plays an equally critical role.
At SCIC (www.scic-chain.com) , we supply lashing and tie-down chains manufactured from sound alloy steel. Each component is subjected to rigorous inspection and testing to ensure that we deliver not just a product, but a guarantee of security. This guide outlines the key parameters, on-site operational procedures, essential precautions, and replacement criteria necessary for the safe and effective use of transport chains.
1. Key Engineering Parameters
Understanding the technical specifications of a chain is the first step toward safe application. Operators and purchasers must look beyond the physical size of the chain and analyze the following critical data points, which must be clearly marked on the chain or its accompanying tag.
a) Working Load Limit (WLL) vs. Breaking Force
- Working Load Limit (WLL): This is the maximum force in daN (dekaNewton) or kilograms that a new chain is authorized to sustain in a straight pull during normal service. This is the "safe" limit. For lashing applications, this is often referred to as the Lashing Capacity (LC).
- Breaking Force (BF): This is the minimum force at which the chain will break during a destructive test. It is significantly higher than the WLL. A standard safety factor (usually 4:1 for transport chains) is applied, meaning the chain is four times stronger than its WLL.
b) Grade and Material
Modern transport chains are made from alloy steel, heat-treated to achieve specific mechanical properties.
- Grade 8 (e.g., Grade 80 or 100): This is the industry standard for high-performance lashing. The number (80 or 100) refers to the grade level, which dictates the tensile strength. A Grade 100 chain offers a higher WLL for the same diameter compared to Grade 80, allowing for lighter chains and easier handling without sacrificing strength.
- Material Composition: The alloy steel must be sound and homogeneous to withstand the dynamic stresses of transport without developing micro-fractures.
c) Dimensions and Fit
- Nominal Size (Diameter): The thickness of the steel wire used to form the links. This is directly correlated to the WLL.
- Internal Dimensions: The length and width inside a link must be sufficient to allow mating components (like hooks and shackles) to seat properly without binding.
d) System Components
A lashing chain system is more than just the chain links. The weakest point in the system determines the overall capacity.

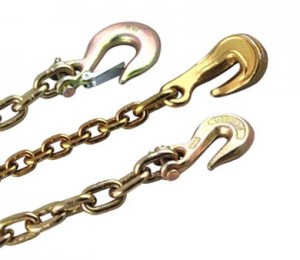

- End Fittings: Hooks (e.g., grab hooks, claw hooks) and shackles must have a WLL at least equal to that of the chain.

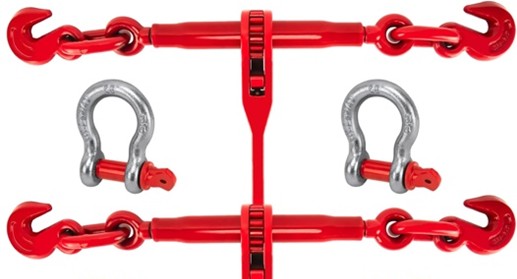

- Tensioners (Ratchet or Lever): These are used to apply the necessary pre-tensioning force to the chain to secure the load.
2. On-Site Operation: Securing the Load
Proper operation requires a systematic approach. Transport chains are subject to "quasi-static" forces (acceleration, braking, cornering) and dynamic forces (vibration). The goal of on-site operation is to counteract these forces.
a) Pre-Use Inspection
Before every use, a visual inspection is mandatory.
- Visual Scan: Look for bent or deformed links, nicks, gouges, and severe rust or pitting.
- Link Articulation: Ensure links flex freely. Stiffness can indicate internal damage or contamination.
- Hardware Check: Verify that hooks are not twisted, their openings are not enlarged, and their safety latches (if fitted) are functioning correctly.
b) Application Techniques
- Routing the Chain: Chains should be routed in a straight line between the attachment points on the vehicle and the load. Avoid sharp edges; if the chain must pass over a sharp corner, use protective corner saddles or edge protectors to prevent notching of the links.
- Applying Tension:
1. Attach the chain to the vehicle's lashing points and the cargo's lashing points (e.g., lashing rings).
2. Use a tensioning device (ratchet or lever hoist) to take up the slack and apply the pre-tension.
3. The pre-tension should be sufficient to hold the load immobile under normal transport vibration but must never exceed 50% of the chain's WLL during tensioning. Over-tensioning puts unnecessary stress on the system and can damage the load.
- Securing Loose Ends: Any excess chain length must be secured to prevent "chain whip" during transit, which can damage the cargo or the chain itself.
c) Symmetry and Balance
For heavy or high-value cargo, the lashing arrangement must be symmetrical. The number of lashings and their angle (lashing angle) are critical. The efficiency of a lashing decreases as the horizontal angle decreases. Ideally, lashings should be as close to horizontal as possible to resist forward movement.
3. Essential Precautions: What NOT to Do
Experience shows that most chain failures are not due to manufacturing defects but to misuse. Adherence to the following precautions is non-negotiable.
a) No Overhead Lifting
This is the most critical distinction. Lashing chains are NOT designed for overhead lifting. Lifting involves dynamic forces that are unpredictable and can exceed the static design limits of transport chain components. Using a lashing chain in a hoisting application is a severe safety violation.
b) Avoid Shock Loading
Sudden jerks or impacts—such as a truck starting abruptly or a load shifting and "snatching" the chain—can create forces far exceeding the WLL, leading to instantaneous brittle fracture. Always tension chains smoothly.
c) Protect from Heat and Abrasion
- Heat: Alloy steel loses its heat-treated strength when exposed to high temperatures. Avoid contact with hot exhaust systems or welding sparks.
- Abrasion: Do not drag chains across rough concrete or abrasive surfaces. This wears down the link material, reducing the cross-sectional area and weakening the chain.
d) Beware of Twisting and Knotting
A chain must never be used in a twisted state. Twisting induces torsional stresses that the chain is not designed to handle. Never use knots to shorten a chain; use a grab hook properly seated in a link.
e) Angle of Loading
If a chain is used in a basket hitch or multi-leg arrangement, the forces on each leg increase as the angle from the vertical increases. This "sling angle factor" must be calculated to ensure no single leg is overloaded.
4. Replacement Criteria: When to Retire a Chain
Chains are wear items. They have a finite service life. Continuing to use a worn or damaged chain is a gamble with safety. A chain must be immediately removed from service and replaced if any of the following conditions are observed:
a) Deformation
- Elongation: Measure the chain over a specific length (e.g., 10 links). If the measured length exceeds the manufacturer's specification (usually 3-5% elongation), the chain has stretched and lost its heat-treated integrity. This is a primary indicator of pending failure.
- Bent or Twisted Links: Any link that is visibly bent out of its original plane indicates an overload event.
b) Wear and Section Loss
- Wear at Bearing Points: Measure the diameter of the link at the points where links contact each other. If the diameter has worn down by more than 10% (refer to manufacturer specs), the chain must be replaced. Thinner steel cannot support the rated load.
- Notching and Gouges: Deep nicks create stress concentration points where cracks can initiate.
c) Surface Condition
- Cracks: Even hairline cracks in the link surface are grounds for immediate rejection.
- Severe Corrosion: Pitting from rust can act as stress risers. If the surface is deeply pitted, the chain is compromised.
d) Hardware Condition
- Hooks: Replace hooks if the throat opening is twisted or has opened up more than 15%, or if there is any visible wear in the saddle of the hook.
e) Missing or Illegible Data
If the manufacturer’s grade marking or WLL tag is missing, and the chain cannot be positively identified, it must be removed from service. You cannot safely use what you cannot identify.
Lashing and tie-down chains are the silent guardians of cargo security. At SCIC, we ensure that the raw material—our sound alloy steel—and the manufacturing process meet the highest standards of metallurgical integrity. Through strict inspection and testing, we deliver chains that you can trust.
However, we urge all operators and purchasers to remember that a chain is only as reliable as the practices surrounding its use. By respecting the Working Load Limit, adhering to operational best practices, and adhering to strict replacement criteria, you create a safety culture that protects human life, preserves costly cargo, and ensures that every journey ends successfully.
For technical specifications or to consult on the right chain for your application, contact SCIC today.
