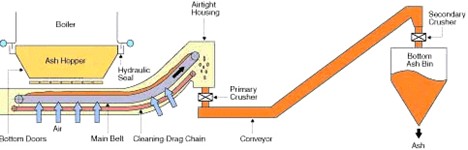

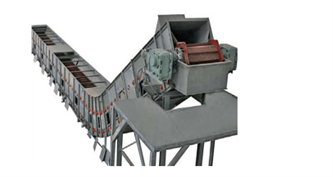

In the demanding environment of a thermal power plant, the consistent removal of ash is a non-negotiable operation. The efficiency of the entire facility hinges on the reliable performance of the ash handling system, and at the very heart of this system lies the submerged ash conveyor. Designed to quench and transport bottom ash from the boiler to storage silos, these conveyors operate under some of the most punishing conditions in the plant. The consistent and stable operation of this conveyor is paramount; any unplanned downtime can directly impact the plant’s ability to generate power continuously.

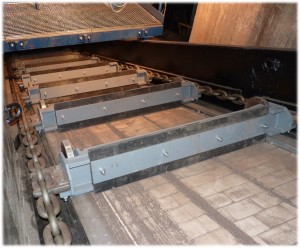

While the ash conveyor is an assembly of several critical components—including scrapers, sprockets, and conveying boards—it is the round link chain that serves as the workhorse of the entire system. This chain is responsible for transmitting the tensile force to move the scrapers and the heavy ash burden along the trough. Given its direct exposure to the elements of the conveyor, the round link chain must withstand a unique combination of extreme stressors: constant abrasion from moving ash, high thermal loads from quenched slag, and the dynamic, cyclic stresses of continuous operation.

Engineered for Extreme Conditions

At SCIC (www.scic-chain.com), we understand that a standard industrial chain is insufficient for the rigors of ash conveyor duty. The working environment inside the trough is a crucible of wear and heat. To meet these challenges head-on, our round link chains are manufactured with a specialized metallurgical process designed to deliver superior longevity.

Our focus is on providing a chain that resists the two primary modes of failure in this application: abrasive wear and surface fatigue. We achieve this through a specially controlled case-hardening effect. This process creates a chain that is exceptionally hard on the outside where it contacts the ash and conveying board, yet retains a tough, ductile core to absorb the heavy shock loads of continuous scraping. Specifically, our ash conveyor chains are produced to achieve a surface hardness of up to 800 HV (Vickers Hardness). This extreme hardness provides a formidable barrier against the grinding action of bottom ash. Furthermore, the hardening depth is meticulously controlled to approximately 10% of the link diameter, ensuring that this wear-resistant layer is deep enough to provide a substantial sacrificial barrier, significantly extending the operational life of the chain before the core properties are ever exposed.

This precise engineering extends to every component of the chain system, including the connectors. We ensure that these critical joining links match the strength and hardness of the chain itself, providing a seamless and reliable loop that plant operators can trust.

Maintenance, Monitoring, and Replacement

Even with the highest quality materials, round link chains are consumable items in an ash conveyor and require a proactive maintenance strategy. The key to maximizing chain life lies in regular inspection and monitoring. Plant maintenance teams should routinely check for signs of elongation, or "stretch," which is a primary indicator of pin and barrel wear. Additionally, inspecting the scrapers and the chain for bent links or excessive wear on the outer surfaces helps predict the remaining service life.

SCIC’s philosophy is to supply chains that extend the intervals between these critical maintenance windows. By providing a chain with a deeper, harder wear layer, we reduce the rate of elongation and surface degradation. This translates to fewer unexpected breakdowns, lower maintenance costs, and, most importantly, the assurance of non-stop power creation. When replacement is eventually necessary, utilizing a high-quality, purpose-built round link chain from SCIC ensures that the conveyor is returned to service with a component capable of enduring the harsh environment until the next scheduled outage.

For reliable, continuous operation in your ash handling system, the choice of round link chain is critical. SCIC is dedicated to providing the durability and performance required to keep your power plant running at peak efficiency.
