1. Introduction

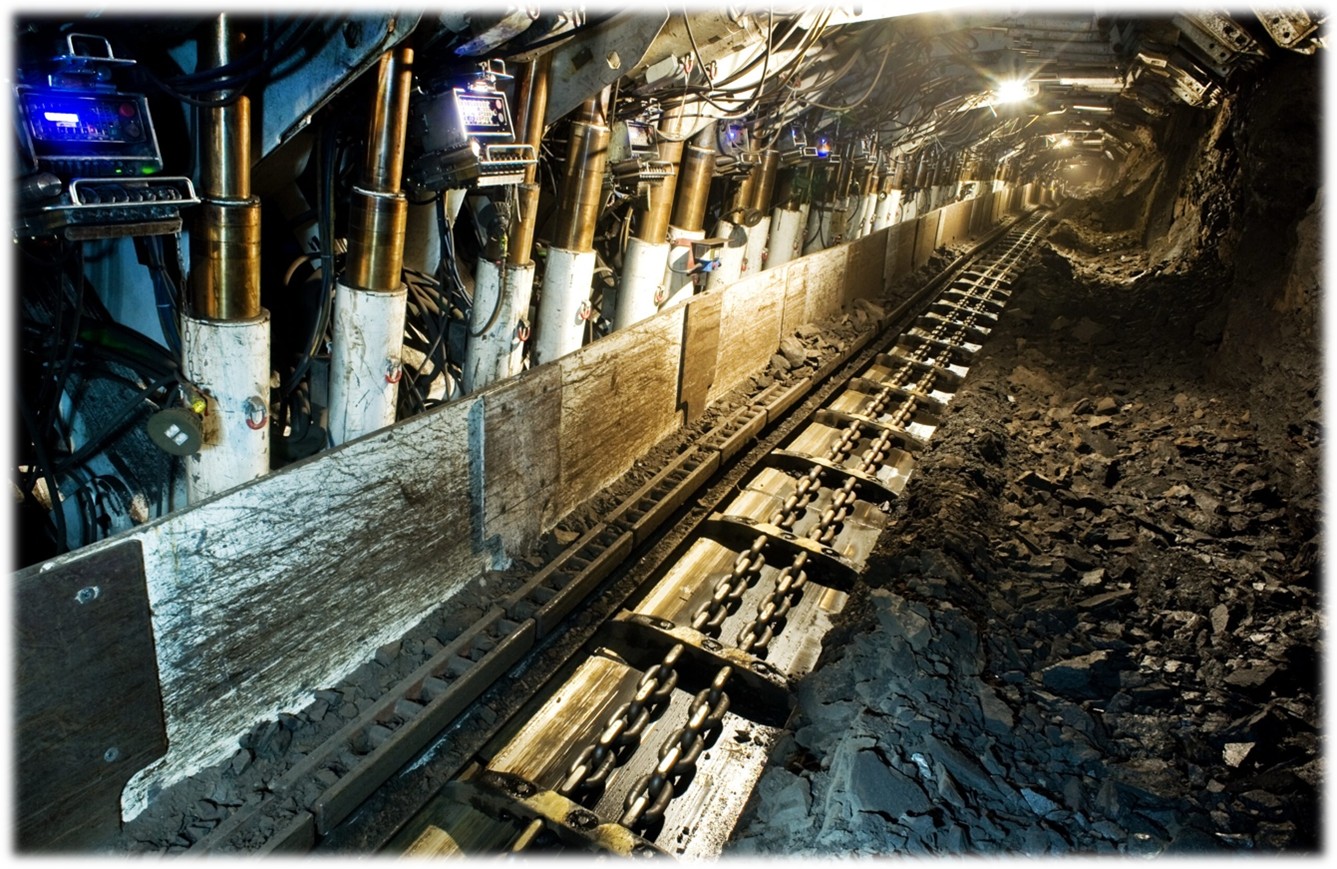

SCIC is committed to supplying high-quality round link mining chains for longwall coal mining applications. We understand that chain failures—when they occur—not only disrupt production but also create commercial disputes, as end users often attribute costs to the supplier without fully investigating site operational conditions. This proposal outlines SCIC's systematic approach to chain failure investigation, claim handling, and root cause analysis, designed to protect both parties' interests while preserving long-term business relationships.
2. SCIC's Pre-Delivery Quality Assurance
Every SCIC mining chain batch is accompanied by comprehensive quality documentation, including:
- Material mill certificates and chemical composition verification
- Dimensional inspection reports to DIN 22252 or equivalent standards
- Proof load/strength testing certificates with elongation data at test force and total elongation at fracture
- Hardness profile test results (Brinell or Vickers)
- Charpy impact test results measuring weld point toughness
- Visual inspection records
These documents establish SCIC's position that mining chains (including chain connectors) leave our facility in full compliance with applicable standards.
3. Common Chain Failure Modes: Technical Classification
3.1 Fatigue Fracture (Predominant Mechanism)
Fatigue is the most common failure mechanism in drive chains subjected to cyclic tensile loading. Cracks initiate at stress concentration sites—such as contact points between adjacent links or corrosion pits—and propagate progressively until final fracture occurs. Fatigue failures typically occur when the chain operates below its static tensile capacity, indicating that operational loading conditions, not material deficiency, are the primary driver.
3.2 Wear-Induced Failure
Chain wear occurs through sliding motion between links as the chain engages and disengages with sprocket teeth. Progressive cross-sectional loss reduces effective strength and leads to mining chain elongation beyond acceptable limits (typically 3%), at which chain sprocket compatibility is lost and load distribution becomes unacceptable.
3.3 Overload and Shock Loading
Sudden impact events—jammed conveyors, seized components, or abrupt starts—produce ductile tensile overload fractures characterised by shear lips, cup-and-cone fracture surfaces, and visible deformation. Overload fractures are typically instantaneous and accompanied by plastic deformation visible to the naked eye.
3.4 Corrosion-Assisted Failures
Underground water conditions—particularly high-salinity or acidic mine water—accelerate general metal loss and create pitting on chain links furface that serves as initiation sites for fatigue crack propagation. Stress corrosion cracking can cause catastrophic brittle fractures without prior warning.
4. Site Operation and Maintenance Failures (Non-Conformance Causes)
Industry research confirms that chain-related failures account for approximately 27% of total longwall downtime, with the overwhelming majority of these failures attributable to inappropriate site operational practices rather than manufacturing defects.
4.1 Improper Chain Tension (Primary Cause)
- Over-tensioning: Excessive pretension induces exaggerated mining chain interlink wear and accelerated sprocket tooth wear. The common industry tendency is to run chains too tight, which seriously reduces chain life.
- Under-tensioning (Slackness): Slackness permits mining chain bunching, jumping on the sprocket, and dislocation from the conveyor race—identified as the most common cause of damage to face-conveyor chains.
- Unequal strand tension: Poor face line alignment causes differential pretensions between face and gob side chains, leading to uneven wear patterns that multiply rapidly and become virtually impossible to redress once established.
4.2 Sprocket and Component Mismatch
- Worn sprocket tooth profiles cause loss of positive location, allowing chain links to slide on driving teeth and accelerating wear on both chain and sprocket.
- Failure to replace missing pan-connecting bolts, damaged conveyor pans, or bent scraper bars creates irregular loading conditions that accelerate chain degradation.
4.3 Inadequate Lubrication and Contamination Control
- Insufficient or improper lubrication (lithium molybdenum disulfide grease for high-pressure applications is recommended)
- Dust and debris ingress into chain link articulations
- Water contamination leading to corrosion and lubricant washout
4.4 Improper Installation and Maintenance Practices
- Failure to verify correct pretension during installation and through routine checks
- Removing more than two links at a time (indicating excessive slack) or removing four links (creating dangerously high pretension)
- Not replacing bent scraper bars or rectifying jam-ups by improvising with drive power rather than following proper procedures
4.5 Face Management Deficiencies
- Excessive snaking and poor face line alignment
- Running chain beyond recommended elongation limits (beyond 2-3% of original length)
- Failure to monitor and maintain tension differentials within the recommended 1-2 ton range between face and gob sides
5. SCIC's Claim Investigation and Resolution Protocol
5.1 Immediate Response (First 48 Hours)
Upon receiving a failure notification, SCIC will:
- Acknowledge receipt and request preservation of the failed chain, mating sprockets, and surrounding components
- Request site maintenance logs, tension records, and production data covering the period before failure
- Deploy a technical representative (or arrange for a local third-party investigator) to photograph and document the failure scene
5.2 Joint Root Cause Investigation
SCIC will initiate a structured investigation following established incident analysis methodology, including:
- Visual and macroscopic examination: Fracture surface morphology, deformation patterns, wear patterns, elongation measurements, and corrosion assessment
- Comparison with pre-delivery data: All in-house qualification records will be reviewed to confirm that delivered chain met specification
- Operational data review: Site tension logs, production records, maintenance history, and incident accounts
- Third-party laboratory analysis (if required): Fractographic analysis via Scanning Electron Microscopy (SEM) to distinguish between fatigue, overload, and manufacturing-origin failures
5.3 Evidence-Based Determination
Based on investigation findings, SCIC will classify the failure cause as one of the following:
|
Determination |
Description |
Commercial Implication |
|
Manufacturing Defect |
Non-conformance to certified specifications identified | SCIC accepts liability; replacement or credit provided |
|
Site Operational Cause |
Failure attributable to improper tension, misalignment, wear, contamination, or documented site practice | Liability remains with end user; SCIC provides technical consultation on prevention |
|
Indeterminate |
Insufficient evidence to determine primary cause | Joint resolution based on commercial goodwill and future relationship |
5.4 Claim Resolution Principles
- Transparency: All test results and investigation findings will be shared with the client
- Technical collaboration: SCIC will provide free technical consultation on corrective actions regardless of liability determination
- Commercial flexibility: For first-time clients or borderline cases, SCIC may offer goodwill adjustments to preserve relationships while maintaining clear accountability boundaries
6. Preventative Recommendations for End Users
To minimise future failures and maximise chain service life, SCIC recommends that mine operators:
- Install real-time chain tension monitoring equipment (where available)
- Conduct weekly tension checks and maintain records
- Replace sprockets when signs of tooth profile wear appear
- Maintain face line alignment within specification
- Use appropriate lubricants and maintain contamination control
- Establish and follow structured maintenance schedules incorporating regular elongation measurement and link condition inspection
7. Conclusion
SCIC's position is that mining chain failures require systematic, evidence-based investigation before liability is assigned. Our pre-delivery qualification documentation establishes chain conformance, while our failure investigation protocol distinguishes between manufacturing defects (for which SCIC accepts responsibility) and site operational factors (which remain the mine operator's domain). This balanced, transparent approach protects both parties' commercial interests while fostering long-term, trust-based supplier-client relationships.
