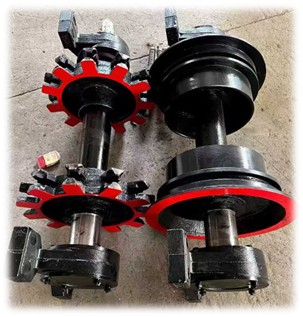

Sprockets and chain wheels are the critical driving and guiding components in round link chain conveyor systems, such as bucket elevators, heavy-duty coal mine conveyors (AFC: armor faced conveyor & BSL: beam stage loader), slag removing conveyors, etc.. Their primary function is to engage with the chain links to transmit power, provide traction, and ensure smooth, positive movement of the conveyed material. The correct selection and manufacture of these round link chain sprockets are paramount to the system's efficiency, longevity, and operational safety.

Selection for Application

The selection of a chain sprocket is dictated by the conveyor's application and duty cycle. Key considerations include:

- Tooth Type: The most common types are pocket teeth and key teeth. Pocket teeth fully envelop the chain link, providing superior grip and load distribution, making them ideal for high-torque, heavy-load applications like main drive sprockets in coal mines. Key teeth, which engage the chain's sidebars, are often used as idler or tail sprockets where less aggressive engagement is required.

- Tooth Number and Pitch Circle Diameter (PCD): The number of teeth and the resulting PCD directly influence the speed of the conveyor and the load distribution on the chain. Sprockets with more teeth provide smoother operation and reduced chain polygonal action, leading to less wear. However, for a given chain pitch, a larger PCD (more teeth) results in a larger overall sprocket size, which must be factored into the mechanical design.

Production, Materials, and Machining

Sprockets are primarily manufactured through forging or casting. Forging is preferred for high-stress applications as it produces a superior grain structure, enhancing strength and impact resistance. Casting is a cost-effective solution for large, complex geometries or lower-duty cycles.

The material choice is foundational. Common steels include medium-carbon steels like 1045 or 4140, and high-strength alloy steels like 40Cr & 42CrMo. The selection balances tensile strength, hardness, and toughness to withstand the specific abrasive and impact loads of the environment, such as coal, ore, or slag.

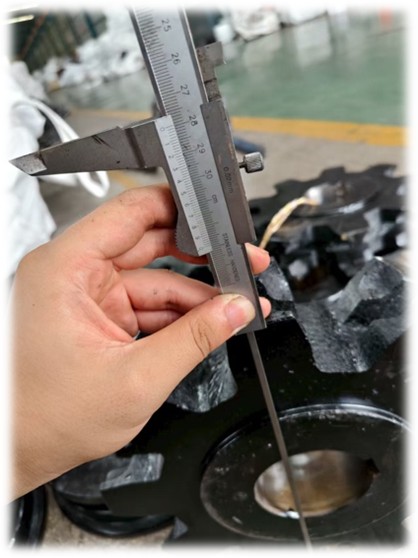

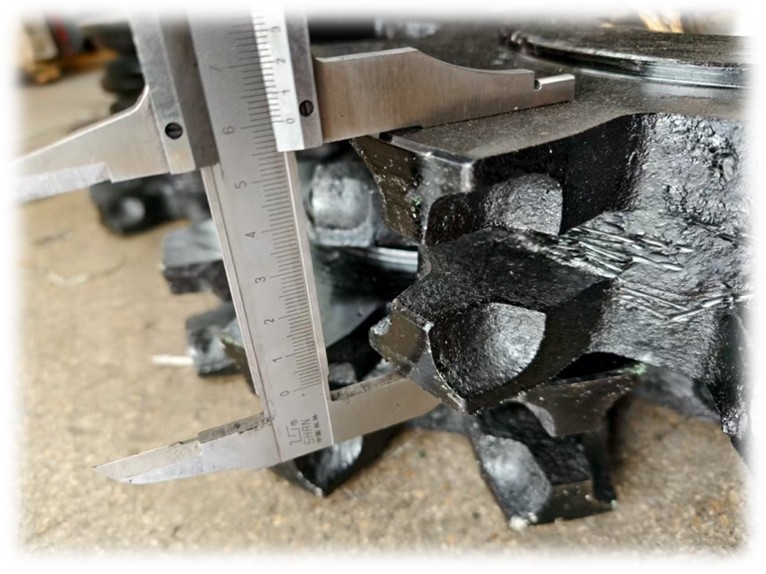

Precision machining is the next critical step. The sprocket profile is machined on CNC lathes and milling machines to ensure the PCD, tooth profile, and hub dimensions are within strict tolerances. Accurate machining is essential for proper chain engagement, preventing premature wear, slippage, and catastrophic failure.

Heat Treatment and Surface Engineering

To combat the severe abrasive wear from the round link chain and conveyed material, sprockets undergo specialized heat treatment. Through-hardening is used for smaller sprockets or those requiring high core toughness. However, for most heavy-duty applications, case hardening is the gold standard.

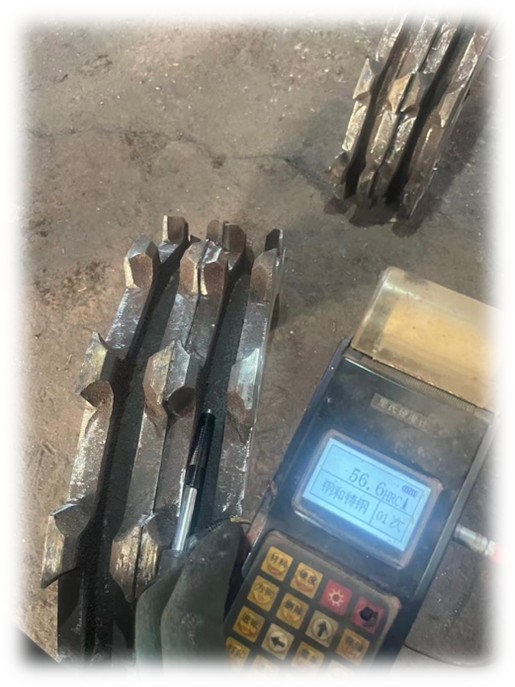

Processes like carburizing or induction hardening are employed to create a hard, wear-resistant surface layer (the "case") on the sprocket teeth, typically reaching 55-60 HRC, while maintaining a tough, ductile core to absorb impact shocks. This combination ensures the teeth resist deformation and abrasion over extended periods, dramatically increasing service life.

Quality Assurance and Trial Fit

Before deployment, a rigorous trial fit is conducted. This involves mounting the sprocket onto its shaft with the actual round link chain to verify perfect engagement. The chain links should seat correctly in the tooth pockets without binding or excessive slack, and the system should rotate freely. This final validation step ensures dimensional accuracy and confirms that the sprocket will perform as intended in the field, preventing costly operational downtime and repairs.

So, a sprocket is not a simple commodity but a precision-engineered component in round link chain conveyors. Its performance is a direct result of a carefully considered selection process, robust material choice, precise machining, and targeted heat treatment, all verified through rigorous testing.
