A Technical Perspective
1. The Durability Imperative
Reliability is paramount in longwall mining, where AFC-related failures are a leading cause of unplanned downtime, accounting for approximately 27% of total production stoppages. The core of this challenge lies in selecting the correct chain for the application. Chains operate under severe cyclic loading, abrasive wear, and corrosive conditions, making durability a function of design, material, and operating environment. This paper analyzes the intrinsic durability characteristics of major chain types to inform better procurement and operational decisions.

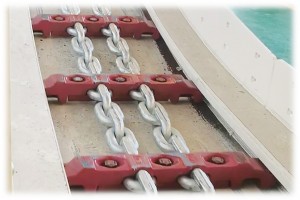

Chains for longwall coal mine are used in Armored Face Conveyors (AFCs). As industry evolves, the traditional round link chain (DIN 22252) has developed to be largely replaced by modern alternatives like flat link chains (DIN 22255) and advanced "Ultra-Flat" or "Solid Profile" designs. They vary in failure mechanisms, operational parameters, and total lifecycle, thus making it vital for optimal chain selection in demanding longwall operations.
2. Chain Design Comparison: Geometry and Failure Mechanisms
The fundamental geometry of a chain directly dictates its stress distribution, wear pattern, and primary failure modes. The table below summarizes the key characteristics:
| Design Parameter | Round Link Chain (DIN 22252) | Standard Flat Link Chain (DIN 22255) | Advanced Flat / Solid Profile Chain |
| Primary Standard | DIN 22252 | DIN 22255 | Proprietary designs (e.g., "Master Profile") |
| Key Durability Strength | Symmetrical, flexible design; high toughness to absorb impacts. | Lower overall height allows for reduced pan profile and increased load capacity. | Maximized contact surface minimizes unit pressure and wear; geometry prevents jamming. |
| Key Durability Weakness | Small interlink contact area leads to very high contact stress and localized wear. | Stress concentrates at link shoulders and connector teeth; connectors are critical weak points. | Higher manufacturing complexity; may require specialized sprockets or components. |
| Primary Wear/Failure Mode | Abrasive wear at small contact points, leading to cross-sectional loss and "wear-fatigue" cycles. | Fatigue fracture initiating at high-stress zones (connectors, shoulders) under cyclic load. | General wear reduction; designed to minimize friction martensite and elongation. |
3. Durability Factors Beyond Basic Design
Durability is not solely defined by link shape. Several interdependent factors play a critical role:
- Material Science and Metallurgy: Advancements in alloying elements (Cr, Ni, Mn, Mo) and optimized heat treatment (quenching and tempering) can enhance wear resistance by 10-25%. High-grade steels like 23MnNiCrMo54 are used to achieve superior breaking loads and fatigue life.
- Connector Reliability: For flat link systems, the connector is often the weakest link. Optimizing connector tooth geometry for even stress distribution is paramount to overall system life.
- Corrosion Protection: Corrosion accelerates wear and fatigue. Advanced protective coatings, such as zinc-nickel plating, can extend time-to-red-rust by several times compared to traditional finishes, directly improving chain life in wet conditions.
- Operational Practices: Proper tensioning is critical. Under-tensioning causes slack and whipping, while over-tensioning drastically accelerates wear and fatigue. Regular sprocket inspection is also essential, as worn sprockets will prematurely damage any chain.
4. Selection Framework: Matching the Chain to the Application
There is no universally "perfect" chain, but there is an optimal chain for specific conditions. Selection should be a collaborative process between the mine and the manufacturer.
- Choose Round Link Chains (DIN 22252) when: The priority is maximum flexibility and impact absorption in challenging, uneven seam conditions. Their symmetrical design is forgiving in applications where misalignment or twisting might occur.
- Choose Standard Flat Link Chains (DIN 22255) when: Conveyor height constraints exist, and a lower pan profile is needed to increase capacity. They are a direct retrofit for round link systems without major pan line modifications.
- Choose Advanced "Ultra-Flat" or "Solid Profile" Chains when: The operational goal is to maximize service life and minimize downtime in high-power, high-tonnage applications. Their engineered geometry aims to directly tackle the root causes of wear and chain failure.
5. Conclusion
The evolution from round link to advanced flat-link designs represents a shift from generalized toughness to optimized wear performance. While round links offer robust flexibility, flat and ultra-flat chains provide engineered solutions for increased capacity and extended life. The most durable choice is a systems-level decision that considers geometry, material quality, connector design, protective finishes, and—critically—proper operational maintenance. Ultimately, investing in a chain that is "perfectly suited to specific conditions" and supported by expert technical collaboration is the most effective strategy for maximizing longwall conveyor uptime and productivity.
