1. Introduction to DIN Standards for Chain Technology
DIN Standards, developed by the German Institute for Standardization (Deutsches Institut für Normung), represent one of the most comprehensive and widely recognized technical frameworks for round steel link chains and connectors globally. These standards establish precise specifications for the manufacture, testing, and application of chains used across diverse industrial sectors including lifting, conveying, mooring, and power transmission. The rigorous technical requirements encapsulated in DIN standards ensure high levels of safety, reliability, and interoperability for chain systems used in demanding industrial and municipal applications. German engineering traditions have positioned DIN standards as benchmarks for quality, with many international standards either aligning with or deriving from DIN specifications, particularly in the field of round link chain technology and mechanical power transmission systems.
The systematic approach of DIN standards covers the entire lifecycle of round link chain products—from material selection and manufacturing processes to testing methodologies, acceptance criteria, and eventual retirement. This holistic standardization framework provides manufacturers with clear technical guidance while offering end-users reliable performance predictions and safety assurances. The standards are periodically revised to incorporate technological advancements, address safety concerns, and reflect evolving application requirements, maintaining their relevance in an increasingly globalized industrial landscape where equipment compatibility and performance consistency are paramount concerns for engineering professionals and equipment specifiers.
2. Scope and Classification of Round Link Chains
DIN standards provide detailed classifications for round steel link chains based on their intended applications, performance grades, and geometric characteristics. Chains are systematically categorized according to their primary function—whether for lifting purposes, conveyor systems, or mooring applications—with each category having specific sub-classifications based on technical parameters. A fundamental classification parameter is the chain link pitch designation, with 5d (five times the material diameter) representing a common pitch specification for conveyor chains as seen in DIN 762-2, which specifically covers round steel link chains with pitch 5d for chain conveyors, further classified as Grade 5 with quenched and tempered treatment for enhanced mechanical properties .
The material grade specification represents another critical classification dimension within DIN standards, indicating the chain's mechanical properties and suitability for different service conditions. For instance, the evolution from DIN 764-1992 for "grade 30, pitch 3.5d" chains to the current DIN 764-2010 for "grade 5, quenched and tempered" demonstrates how material improvements have been institutionalized through standard revisions . This grade classification directly correlates to the chain's load-bearing capacity, wear resistance, and fatigue life, enabling designers to select appropriate chains for specific operational requirements. The standards further differentiate chains based on their inspection and acceptance criteria, with some requiring calibrated and tested verification as referenced in the superseded DIN 764 (1992) for "calibrated and tested round steel link chains" .
3. Technical Evolution of Key Standards
The dynamic nature of DIN standards reflects continuous technological advancement in chain design, materials science, and manufacturing processes. Examination of standard revision histories reveals a pattern of progressive enhancement in technical requirements and safety considerations. For example, DIN 762-2 has evolved significantly from its 1992 version, which specified "grade 3" chains, to the current 2015 version specifying higher-performance "grade 5, quenched and tempered" chains . This evolution represents not merely a change in designation but embodies substantial improvements in material specifications, heat treatment processes, and performance expectations, ultimately resulting in chains with superior mechanical properties and longer service life.
Similarly, the development of DIN 22258-2 for Kenter type chain connectors demonstrates how specialized connecting elements have been standardized to ensure system reliability . First introduced in 1983 and subsequently revised in 1993, 2003, and most recently in 2015, this standard has incorporated increasingly rigorous requirements for connector design, materials, and testing. The latest 2015 revision includes 18 pages of detailed specifications, reflecting the comprehensive approach taken to address this critical safety component in chain systems . The consistent pattern of standard enhancement—typically every 10-12 years with occasional intermediate amendments—ensures that DIN standards remain at the forefront of safety and performance while incorporating practical feedback from industrial applications.
4. Standardization of Chain Connectors and Accessories
Chain Connectors represent critical components in round link chain systems, enabling assembly, disassembly, and length adjustment while maintaining the structural integrity and load-bearing capacity of the chain. DIN standards provide comprehensive specifications for various chain connector types, with Kenter type connectors specifically addressed in DIN 22258-2 . These standardized connectors are engineered to match the strength and performance characteristics of the chains they join, with detailed specifications covering dimensions, materials, heat treatment, and proof testing requirements. The standardization of connectors ensures interoperability between chains from different manufacturers and facilitates maintenance and repair operations in field conditions.
The significance of connector standardization extends beyond technical compatibility to encompass critical safety considerations. In lifting applications, for instance, the failure of a connector can have catastrophic consequences, making the rigorous specifications within DIN standards essential for risk mitigation. The standards establish performance requirements, interface geometry, and test methods that connectors must satisfy before being deemed acceptable for service . This systematic approach to connector standardization reflects the comprehensive safety philosophy embedded within DIN standards, where every component in a load path must meet meticulously defined criteria to ensure overall system reliability.
5. Global Integration and Application
The influence of DIN standards extends far beyond Germany's borders, with many standards being adopted as references in international projects and incorporated into the regulatory frameworks of various countries. The systematic compilation of German chain standards in publications like "German Chain Drive Standards" by the National Chain Drive Standardization Technical Committee of China (SAC/TC 164) demonstrates how these specifications have been disseminated globally to facilitate technical exchange and standardization convergence . This publication, containing 51 individual DIN standards covering multiple chain types including "multiple plate pin chains", "plate chains", "flat top chains", and "conveyor chains", has served as a vital reference for chains and sprockets across international industries .

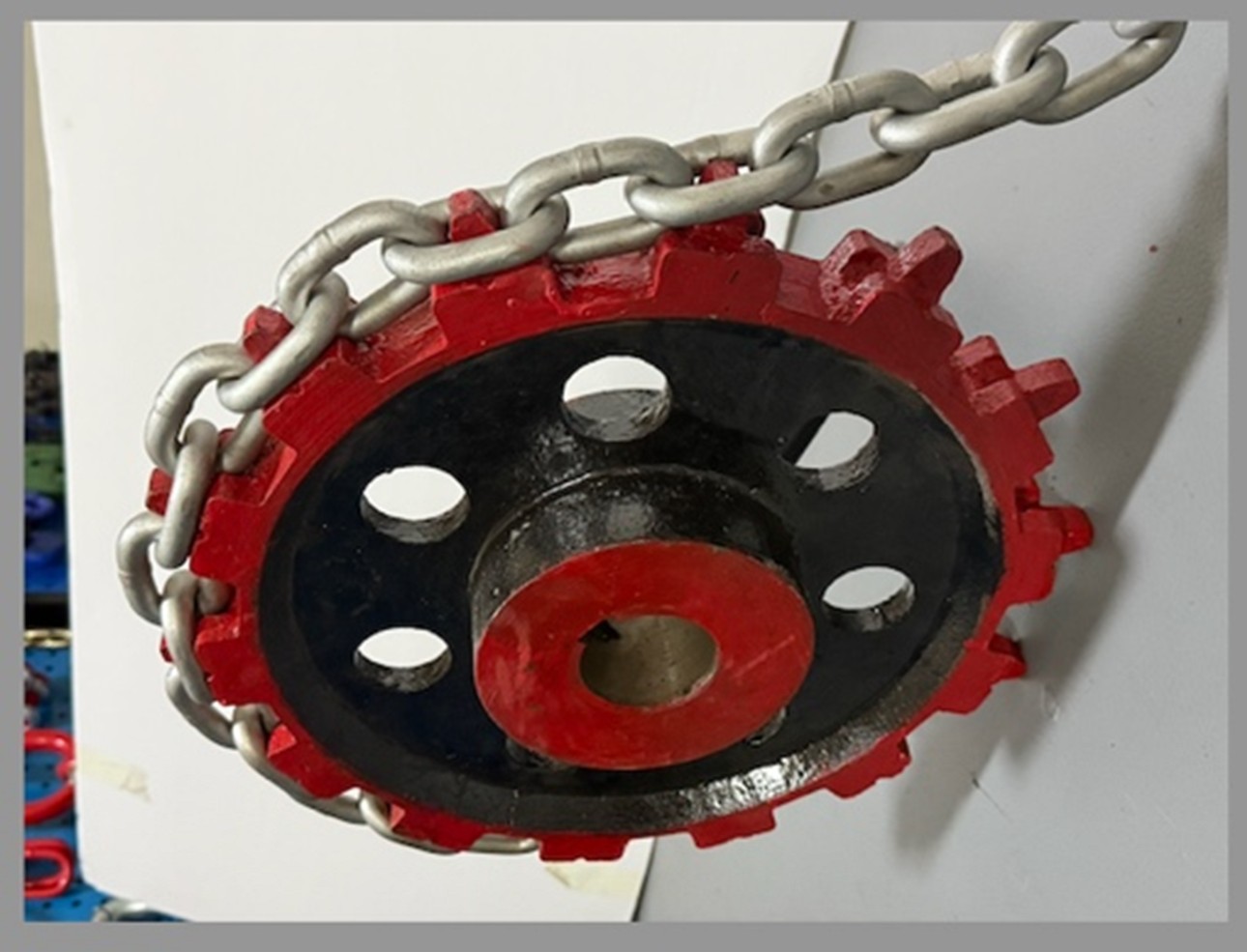

The global relevance of DIN standards is further evidenced by their harmonization with international standardization initiatives. Many DIN standards are progressively aligned with ISO standards to facilitate international trade and technical cooperation, while still maintaining the distinctive rigorous technical requirements that characterize German engineering standards. This dual approach—preserving DIN-specific requirements while encouraging international alignment—ensures that manufacturers can design products that meet both regional and global market requirements. The standards incorporate technical parameters for sprocket tooth profiles, connection dimensions, and material specifications that enable precise interoperability between chains and sprockets from different manufacturers worldwide .
6. Conclusion
DIN standards for round steel link chains and connectors represent a comprehensive technical framework that has significantly influenced global chain manufacturing and application practices. Through precise classification systems, rigorous material and performance specifications, and continuous evolution reflecting technological advancements, these standards have established benchmarks for safety, reliability, and quality in diverse industrial applications. The systematic coverage of both chains and their connecting elements demonstrates the holistic approach taken by the standardization body to address the complete chain system rather than individual components in isolation.
The ongoing development and international harmonization of DIN standards will continue to shape the chain industry worldwide, particularly as requirements for safety, efficiency, and global interoperability intensify. The existence of compiled reference works in multiple languages, along with the systematic updating of standards to reflect technological improvements, ensures that this influential body of technical knowledge remains accessible and relevant to engineers, manufacturers, and technical professionals across the globe. As chain applications expand into new industries and operating environments become more demanding, the robust foundation provided by DIN standards will continue to serve as an essential reference point for the design, selection, and application of round steel link chains and connectors in the twenty-first century.
